DK5000E data cable U/UTP Cat 5E Eca LSFH 24AWG

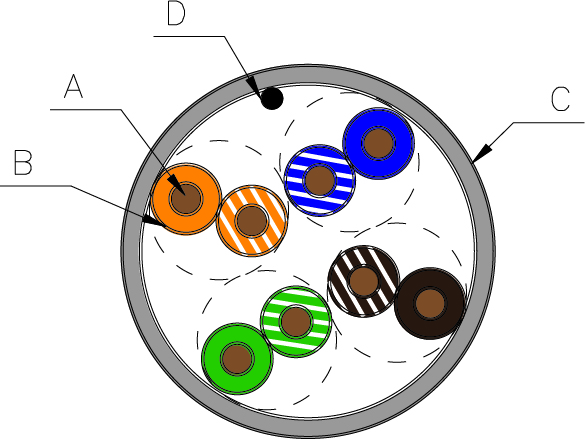

• U/UTP Unfoiled UTP Cable
• Compatible with PoE/PoE+ (Power over Ethernet) technology, allowing the cable to power network devices

• LSFH (Low Smoke Free of Halogen) 0.67mm-thick outer sheath

• 69% nominal speed

Category 5E

The data cable category Cat 5E (enhanced or improved) originates from the Cat 5 and it is backwards compatible, with the standards of the inferior categories (Cat 5 and Cat 3). The 5E category achieves transmission frequencies of up to 100 MHz (in each pair) with a throughput of 100Mbps. This type of cable complies with the standards 10BASE-T and 100BASE-T and will be mainly used in these installations.

They are characterized for:

• Comply with TIA/EIA-568B.2-1
• Transfer rate up to 100Mbps
• Frequency range of up to 100MHz
• Includes rip cord to make it easier to strip the cable
• Nominal impedance of 100 ohms
• Maximum resistance per conductor below 9.38 Ohms/100m

Compatibility of RJ45 connectors with Televes data cables:

OK Compatible
OK* Compatible, but there are better choices
X Incompatible
** Mechanical compatibility

• Declaration of performance

  DOP04170007_2_219602.pdf
  (0.22 MB)

• Declaration of performance

  DOP06170006_1_219602.pdf
  (0.22 MB)

• Declaration of Conformity

  DOC09170006_0_219602.pdf
  (0.21 MB)

• Technical specifications

  technical_specifications_en_US_TEC05210087_219602.pdf
  (0.12 MB)

• Product Sheet

  219602_en_US_product_sheet_PSH01231051.pdf
  (0.11 MB)
