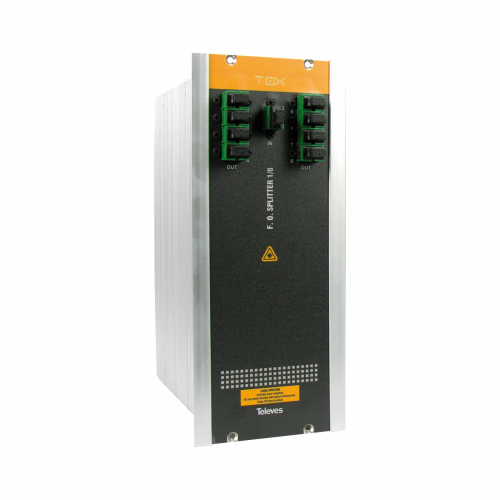

8-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fiber headends.

16-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fiber headends.

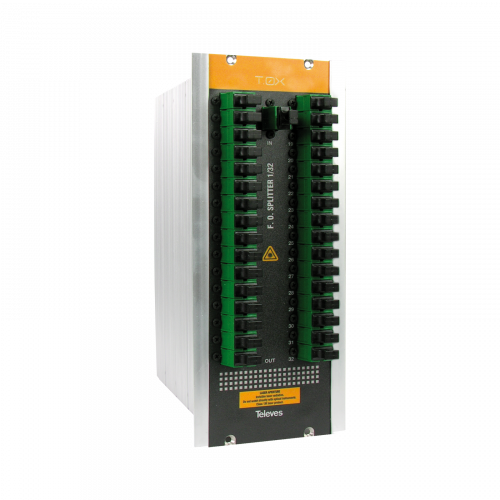

32-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.
The T.0X format frame allows rack installation for optical fiber headends.

Passive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks.
The T.0X format frame allows rack installation for optical fiber headends.

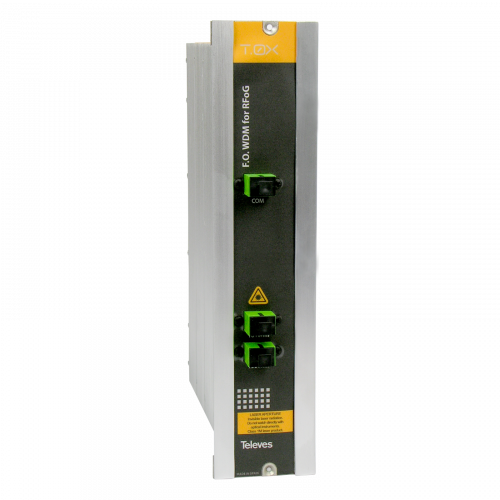

Passive device that multiplexes/demultiplexes two optical inputs: 1610 nm (GPON), and 1550 nm (Downlink). For application in RFoG systems.
The T.0X format frame allows rack installation for optical fiber headends.

Highly configurable optical receiver for cable operators. Receives one optical signal in the 1200 nm -1600 nm range and restores it on the RF output (87 MHz-862 MHz /950 MHz-2150 MHz) with amplification.
The aluminium frame enables outdoor installation (local power supply).
Perfect for RF Overlay, FTTB, and FTTC applications.

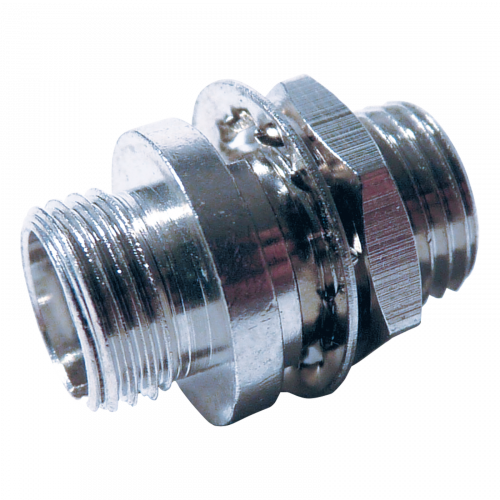

Adapter for connecting two male optical connectors with FC mechanics. Both connectors must have the same type of polish to avoid signal loss.
Compatible with single-mode (SM) fibers.

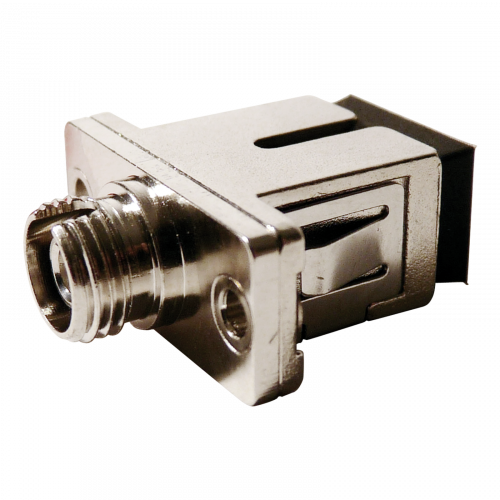

Adapter that allows the transformation of an FC optical connector into an SC optical connector and vice versa. It allows the interconnection of two optical connectors with different mechanics. Both connectors must have the same type of polish to avoid signal loss.
Compatible with single-mode (SM) fibers.

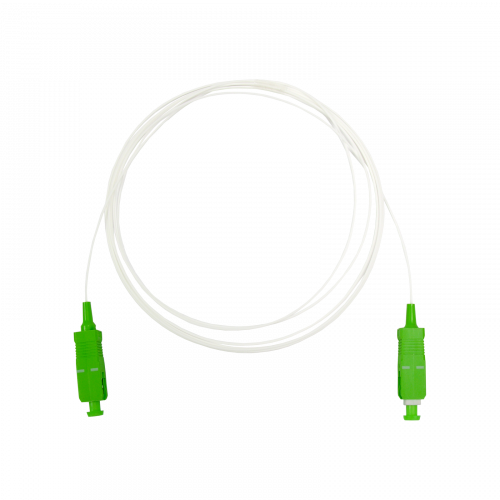

Single-mode (SM) fibre optic patch cord, used for interconnecting optical equipment, has both ends pre-terminated with SC/APC connectors.

The 900μm cover is of LSFH type and is recommended for indoor use.
Additionally, its connectors have a short boot, facilitating installation in wall sockets, avoiding attenuation due to undisired bends, aiding the sliding of the patch cords through conduits, reducing the space required for connection, and being less demanding regarding bend radius.
It can be cut to convert it into a pigtail, a cable with a single pre-terminated end that allows fusion to the other end.

Splicing tool to mechanically bond two fibers by aligning them in a mechanical splice (without fusion). The kit is provided with a carrying case and the following accessories:

• Mechanical splicer kit (ref. 2322)
• 10 SC/APC connectors (ref. 2329)
• 5 Mechanical splices (ref. 2328)
• Fiber cleaver (ref. 232301)
• Precision fiber stripper (ref. 2324)
• Cleaning tape (ref. 232910) with one spare
• 10 Cleaning buds for connectors

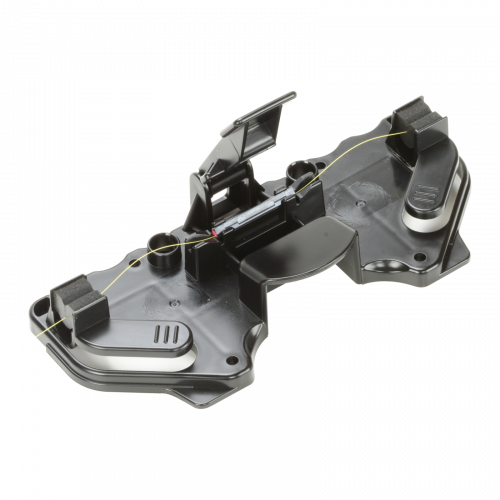

Splicing tool to mechanically bond two fibers by aligning them in a mechanical splice (without fusion).

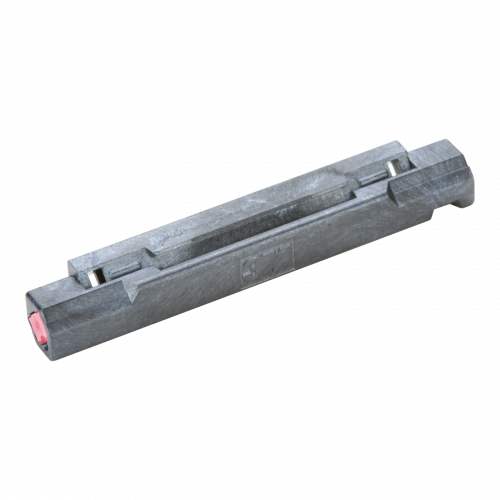

Accessory for the alignment and connection of 2 optical fibers with the help of a splicing tool. Can be opened to realign the fibers.
