Category 6

Cables and patch-cords Category 6

Category 6

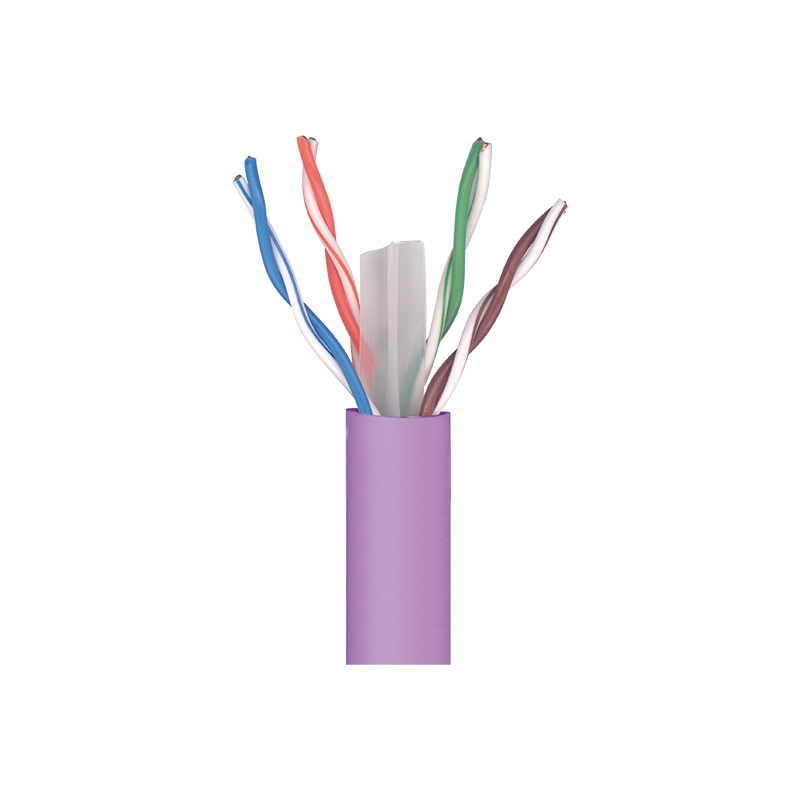

Data cable category Cat 6 complies with the standard for Gigabit Ethernet and it is backwards compatible, with the standards of the inferior categories (Cat 5/5e and Cat 3). Category 6 evolves over category 5E, allowing to achieve transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps of throughput. It includes characteristics and specifications to avoid crosstalk and noise. This type of data cable can be used in 10BASE-T, 100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems.

They are characterized for:

Comply with TIA/EIA-568B.2-1
Crucifix type padding
Transfer rate up to 1Gbps
Frequency range of up to 250 MHz
Includes rip cord to make it easier to strip the cable
Nominal impedance of 100 ohms
Maximum resistance per conductor below 9.38 ohms/100m

Compatibility of RJ45 connectors with Televes data cables:

Reference		219602	219701	219910	212201	2123	212302	212305	212310	212101	219302	219312	219322	219102	212330
Female connectors	209901	✔	✔	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘	✔
	209905	✔	✔	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘	✔
	209921	✔	✔	✔	✔	✔	✔	✔	✔	✘	✘	✔	✘	✘	✔
	209903	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔	✘	✘	✘	✘	✔*
	209923	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔	✔	✔*	✔	⚠	✔*
Male connectors	209902	✔	✔	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘	✔
	209904	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔	✘	✘	✘	✘	✔*
	209906	✔	✔	✔	✔	✔	✔	✔	✔	✘	✘	✘	✘	✘	✔
	209922	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✘	✘	✔	✘	✘	✔*
	209924	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔*	✔	✔*	✔	⚠	✔*

✔ Compatible
✔* Compatible, but there are better choices
✘ Incompatible
⚠ Mechanical compatibility

Copper (Cu)

The best quality materials for the professional networks

The best conductor for data cable
Essential for the installation of fixed commercial networks: high performance and compliant with standards EN 50173 Class E (250MHz)

Products

DK6000 data cable
U/UTP Cat 6 Eca PVC 23AWG

2199

DK6000 data cable
U/UTP Cat 6 Fca PE 24AWG

212201

DK6000 data cable
F/UTP Cat 6 Dca LSFH 23AWG

212101

DK6000 data cable
U/UTP Cat 6 Dca LSFH 23AWG

2123,212302,212305

DK6000 data cable
U/UTP Cat 6 Dca LSFH 24AWG

212310

DK6000 data cable
U/UTP Cat 6 Cca LSFH 23AWG

212330

Copper Clad Aluminium (CCA)

Budget alternative for domestic networks

Light and economical: The CCA (Copper Clad Aluminium) conductors replace a portion of the inner copper conductor for aluminium
Installation in domestic networks where performance is not as critical

Products

DK6000 data cable
U/UTP Cat 6 Fca PVC 23AWG

219901
