Arantia TV Middleware Lite Up to 1000 users
By means of this web-based middleware, the final user will gain access to the configured services: IP basic television service with channel guide, welcome screen, weather information and language selection.
In addition, this system allows the integration with other entertainment services or informative services (Corporate Channel), among others.
Televes reserves the right to modify the product
- Based on web technology
- Backend (system administrator mode) with a management tool that allows to:
- Room and guest management
- TV/STB configuration
- Channel list administration
- Personalization of the welcome message, the main logo and the TV service
- Statistics visualization like: use of TV service, use of EPG service, time using each service, time spent in each channel...
- Hotel network and hotel sections configuration
- Management of other entertainment services included like ArantiaCast system (Casting), Corporate Channel...
- Frontend (customer facing interface) compatible with the most popular end user devices (TVs and STBs) deployed in Hospitality IPTV projects, that allows the access to:
- Welcome message: multilanguage text, picture and logo (without PMS integration)
- EPG: information extracted from broadcaster
- Weather widget
- Language configuration
- Integration with other services like ArantiaCast or Corporate Channel
- Device licences for accessing Middleware services not required
Performance | HDD | 240GB SSD |
Hardware Description | Dimensions and Weight | Dimensions |
| 437 x 43 x 368mm | ||
| Weight | ||
| Gross Weight: 6.35kg | ||
| Cooling | 2x Counter-rotating Fans | |
| LEDs | Power Status LED HDD Activity LED Network Activity LEDs Fan Fail/System Overheat LED | |
| Power Supply | Max. 600W 100-240V 50/60Hz | |
| Power Efficiency | ||
| 93% | ||
| Energy performance certification | ||
| Platinum | ||
| Storage Temperature | -40...70ºC | |
| Relative Humidity | 8%...90% (non condensing) |

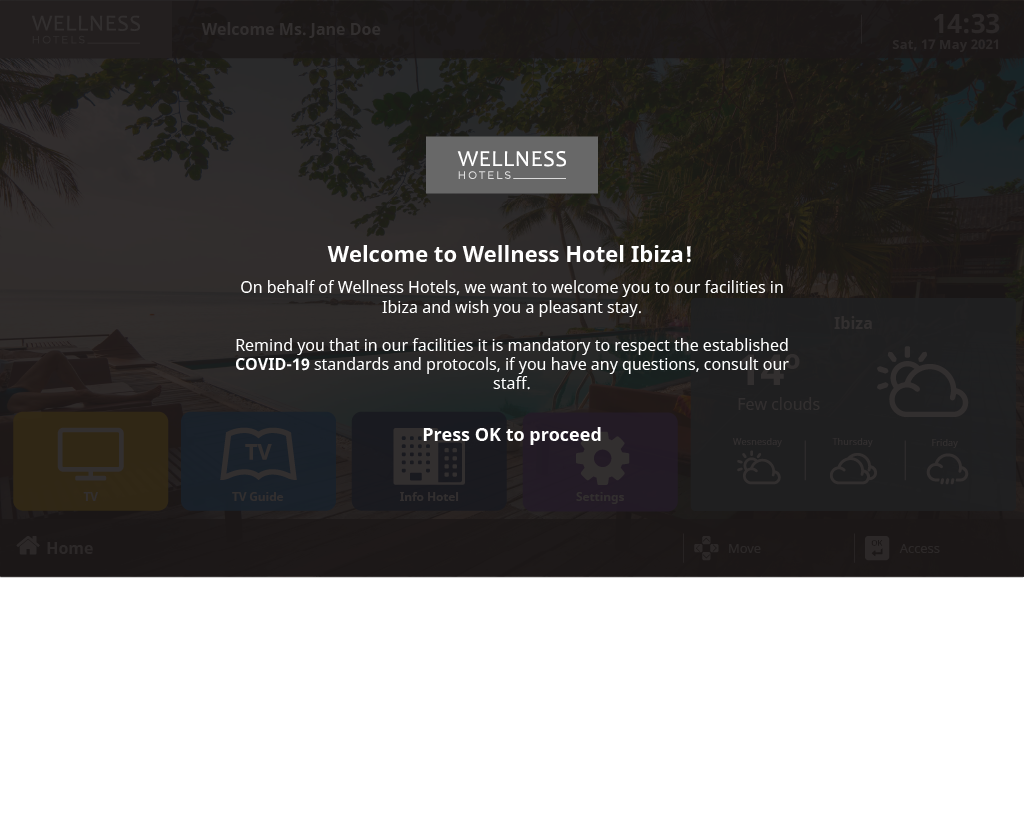

Welcome message
The welcome message will be shown the first time the client enters the bedroom.
It is possible to define a message in different languages, as well as the main image or the desired logo.

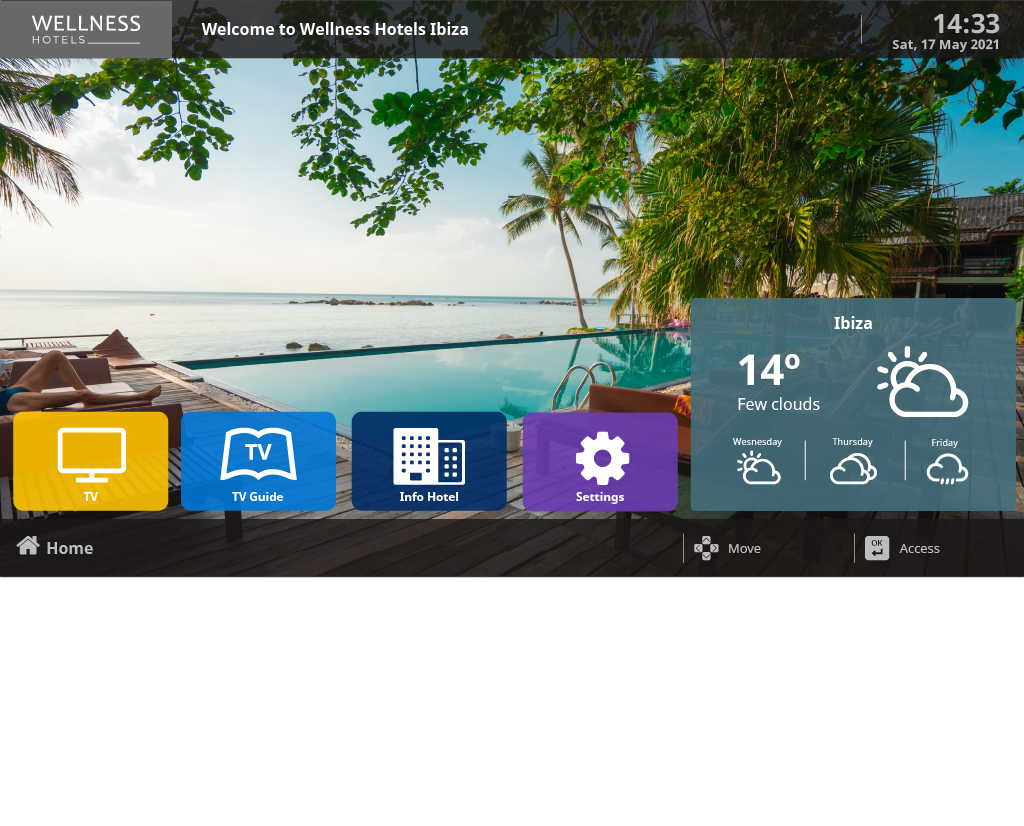

Main menu
The system main menu shows the functionalities activated by the system administrator, allowing the management of each item in layout, size, colour or functionality.

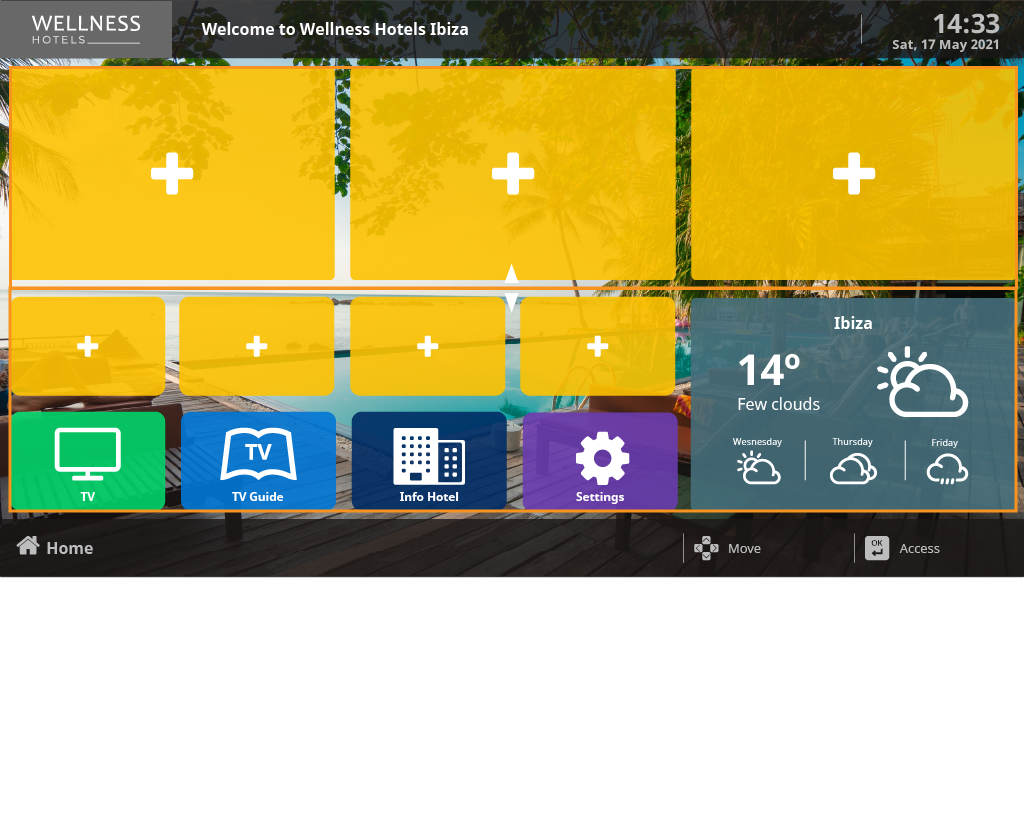

Interface
To offer an interface control and total customization, ArantiaTV main menu is based on a virtual grid of 4x6 sectors.
Each item created (box+icon+text) can be resized according to the establishment priorities, as well as formatted in text, colour and iconography.

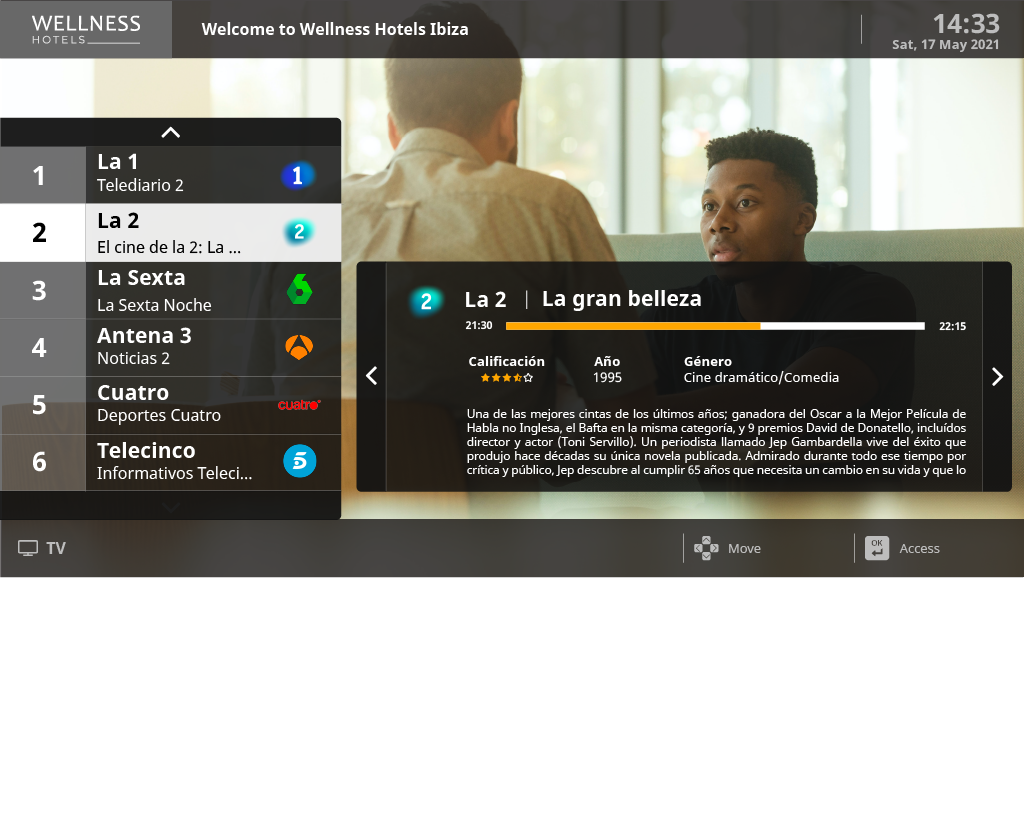

Television and Radio
IPTV services allow the distribution of TV and Radio channels from DTT, satellite, cable or IP sources, enabling all services provided to be incorporated into a single system regardless of the source.
The channel list shows:
- Numeric location of channel access (number from 1 to XXX).
- Program name and current broadcast.
- Channel icon.
In addition, an informative banner is included at the bottom of the screen, where interesting generic messages for the guests could be displayed.
Weather service
The weather service (widget) shows the weather conditions information for the city selected at the Back Office tool with 3-day forecast.
This widget can be included at any point on screen, according to the available main menu layout grid.
Other integrable services (*)
This system allows the integration of other contracted entertainment services, like:
- ArantiaCast System: professional casting solution that allows guests to transfer their favorite contents from their mobile devices directly to the hotel room TV.
- Corporate Channel service: through this service, the guests can check the hotel's services, news or promotions at any time.
- VOD (Video On Demand) service: with this service, each television installed in the guest rooms becomes a content library accessible at any time.
(*) These services are not included in the Middleware, but must be purchased separately.
