AVANT 12 programmable multiband amplifier for terrestrial, 32 digital filters and auto/advanced programming via ASuite (Bluetooth®)

Unprecedented output level to reach places others cannot

Multi-input multiband amplifier, perfect for individual or MDU (Multi Dwelling Unit) terrestrial installations, that allows individual programming of channels available on 4 LowVHF+HighVHF+UHF inputs (OTA TV), in a total of 32 digital filters. The multiband amplifier has 6 inputs: FM-4x[LowVHF+HighVHF+UHF]-CATV, and can achieve programmable amplification and balancing of the different RF inputs. This device allows channelling selection (off-air or CATV) of the output signal, providing the benefict of being able to mix OTA signals with those coming from a CATV headend. In addition, it includes automatic filtering of LTE-telephony signals, making the device discriminate by itself the programming of the filters up to channel 36 (LTE600) or 51 (LTE700).

Thanks to the built-in Bluetooth® antenna, it is possible to carry out advanced programming of the multiband amplifier wirelessly from a smartphone or tablet (Android/iOS), with the ASuite application. With this application, the professional user can perform a wide range of functions:

  • Channel filter programming
  • Channel level autoadjust for balancing all filters
  • Manual fine-adjust after the autoadjust for each channel separately
  • Activation of the antenna powering
  • Import/export configurations

In addition, it also includes an autoprogramming function, executable from ASuite, with which the device uses its intelligence and programs itself, searching and selecting the most outstanding channels and, afterwards, balancing the signal level between them.

RED compliant

Download our brochure
Ref. 532280
Codes
Product Sheet
EAN13: 8424450329894
SKU
532280
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • With the ASuite application, advanced programming of the device can be carried out wirelessly (Bluetooth®), easily and conveniently from a smartphone or tablet (Android/iOS)
  • High output level: up to 66dBmV (EN50083), to reach a huge number of outlets
  • Autoprogramming: with this function available in ASuite, the device performs channel assignment and level adjustment by itself, as well as activating the antenna powering when it detects that the signal requires it
  • Up to 32 individually programmable filters, with individual digital filtering of each channel, including adjacent channels
  • Digital processing of the channels, being able to shift them in frequency, and resulting in a perfectly balanced signal level between the different channels at the output
  • Automatic signal regulation in each filter (AGC). Also allows fine adjust of the output level after regulation
  • High selectivity LowVHF/HighVHF/UHF digital filters: >30dB rejection (@ 1MHz)
  • CATV signal input with extended frequency range: 54-1220MHz
  • SAW (Surface Acoustic Wave) filter for automatic rejection of LTE600/700 telephony signals from channel 36 or 51, with the best selectivity and stability
  • ISDB-Tb, ATSC,DVB-T/T2 and NTSC compatible
  • TForce technology: terrestrial signal level is always balanced and adjusted to the optimum value
  • Power supply at the inputs for antenna powering, when the signal requires it
  • LED status indicator as well as physical autoadjust button built into the control panel
  • High shielding chassis (Zamak) to protect against electromagnetic interference
  • Very light and compact size for a high performance control unit (196x122x43mm)
  • 100% European design and manufacture: fully automated manufacturing and subjected to rigorous quality controls

Max. number of filters32
Channels per filter1
Bands
LowVHFFMHighVHFUHFCATV
Frequency rangeMHz
54 ... 8887.5 ... 108174 ... 216470 ... 69854 ... 1218
GaindB
78 30 78 78 40
Gain adjustment rangedB
AGC5 ... 30 AGC AGC10 ... 40
Manual regulation per filterdB
-3 ... 3-5 ... 5-3 ... 3-3 ... 3--
Slope regulationdB
------0 ... 80 ... 20
Input leveldBmV
-20 ... 4015 ... 40-20 ... 40-20 ... 40--
Output level DIN45004BdBmV
61 61 61 61 61
Output level EN50083dBmV
66 66 66 66 66
Programmable output leveldBmV
30 ... 5820 ... 4830 ... 5830 ... 58--
Noise figuredB
9 --7 6 8
SelectivitydB
> 50*1 > 20*2 > 50*3 > 50*4--
Output channellingCATV / Off-air
Inputs
FMLowVHF+HighVHF+UHFCATV
Number of inputs
1 4 1
Frequency range CHs inputMHz
87.5 ... 10854 ... 698*554 ... 1218
Frequency range CHs output (Off-air)MHz
87.5 ... 10854 ... 69854 ... 1218
Frequency range CHs output CATVMHz 54 ... 1002
Powering per inputsVdc
12
Max current inputmA
70
Input voltageVac 110 ... 230
Mains frequency50 Hz / 60 Hz
Max. currentmA290
Max. power consumptionW15
Protection index (IP)20
Operating temperature°F 23 ... 113

*1 @±6MHz / Adjacent CH: >30 (@±1MHz)

*2 @±20MHz

*3 @±6MHz / Adjacent CH: >30 (@±1MHz)

*4 @±6MHz / Adjacent CH: >30 (@±1MHz)

*5 Auto-LTE filter: 608/698 MHz

Physical data

Net weight: 1,059 g

Gross weight: 1,227 g

Width: 201 mm

Height: 123 mm

Depth: 44 mm

Main product weight: 924 g

Packing

Box 1 pcs.

More Information
tlv_discontinued No
tlv_slogan Unprecedented output level to reach places others cannot
tlv_tabla_especificaciones
Max. number of filters32
Channels per filter1
Bands
LowVHFFMHighVHFUHFCATV
Frequency rangeMHz
54 ... 8887.5 ... 108174 ... 216470 ... 69854 ... 1218
GaindB
78 30 78 78 40
Gain adjustment rangedB
AGC5 ... 30 AGC AGC10 ... 40
Manual regulation per filterdB
-3 ... 3-5 ... 5-3 ... 3-3 ... 3--
Slope regulationdB
------0 ... 80 ... 20
Input leveldBmV
-20 ... 4015 ... 40-20 ... 40-20 ... 40--
Output level DIN45004BdBmV
61 61 61 61 61
Output level EN50083dBmV
66 66 66 66 66
Programmable output leveldBmV
30 ... 5820 ... 4830 ... 5830 ... 58--
Noise figuredB
9 --7 6 8
SelectivitydB
> 50*1 > 20*2 > 50*3 > 50*4--
Output channellingCATV / Off-air
Inputs
FMLowVHF+HighVHF+UHFCATV
Number of inputs
1 4 1
Frequency range CHs inputMHz
87.5 ... 10854 ... 698*554 ... 1218
Frequency range CHs output (Off-air)MHz
87.5 ... 10854 ... 69854 ... 1218
Frequency range CHs output CATVMHz 54 ... 1002
Powering per inputsVdc
12
Max current inputmA
70
Input voltageVac 110 ... 230
Mains frequency50 Hz / 60 Hz
Max. currentmA290
Max. power consumptionW15
Protection index (IP)20
Operating temperature°F 23 ... 113

*1 @±6MHz / Adjacent CH: >30 (@±1MHz)

*2 @±20MHz

*3 @±6MHz / Adjacent CH: >30 (@±1MHz)

*4 @±6MHz / Adjacent CH: >30 (@±1MHz)

*5 Auto-LTE filter: 608/698 MHz
tlv_ean 8424450329894
tlv_dim_product_x 201
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 123
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 44
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 924
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 1,227
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 1,059
tlv_1_type_pack Box
tlv_1_type_pcs_pack pcs.
tlv_1_pcs_pack 1

Channel filter programming

The desired channels are selected from each of the available inputs, assigning a filter to each of them up to a maximum of 32. In addition, the selected channels can be processed, shifting them in frequency.

Autoprogramming

This function processes the channels at the inputs, selecting the most prominent ones and assigning a filter to each of them. Afterwards, it performs an autoadjust to balance the signal level of the filtered channels. All of this in less than 1 minute.

Channel level autoadjust

The signal level of each channel is automatically processed by the device, bringing out the maximum possible level and balancing all filtered channels, so that there are no signal fluctuations between them.

Channel level manual fine adjustment

ASuite allows a further adjustment of ± 3dB to the previously autoadjust. It is carried out manually and independently for each filter, for those channels that require a finer adjustment.

Antenna power supply switching

It manages the flow of current through each of the inputs to power antennas or preamps, when the processed signal requires it.

Import/Export configurations

ASuite offers saving of configurations, as well as the loading of previously stored ones, saving time to the professional in the installation.

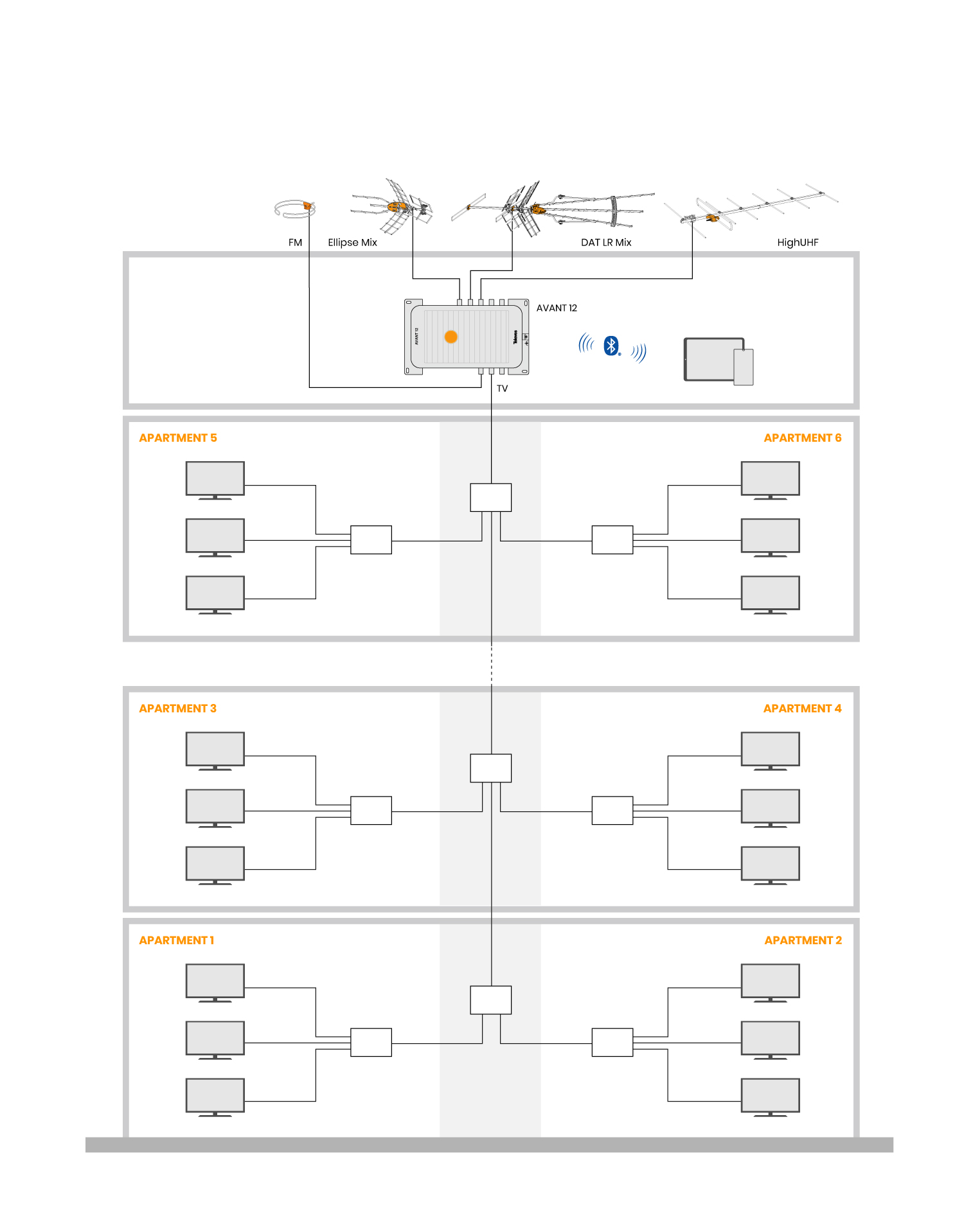

Master Antenna System for OTA Signal Reception

This MDU is equipped with multiple terrestrial antennas to receive signals from different directions and distances. It also features an omnidirectional FM radio antenna. The Avant 12 amplifier is installed immediately after the receiving antennas and programmed to receive, filter, adjust, and combine the signals from all antennas into a single cable for distribution.
The output from the Avant 12 feeds into the MDU's main trunk line through a single coaxial cable. From there, the processed and amplified TV signal is distributed to all units.
