SK2015plus Coaxial cable, 18AtC Cca Euroclass, A++ Class shielded
RG-6 coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.
Televes reserves the right to modify the product
- Copper conductors
- Class A++ shielded
- Cca-s1a,d1,a1 Euroclass
- External UV-resistant LSFH sheath, white colour
- 75 Ohm characteristic impedance
- Available in reels of different lengths
Class A++ Trishield (TSH) coaxial cable
With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.
They belong in EN 50117 standard Class A++, according to their structural properties:
- For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
- For 30 MHz - 1000 MHz => SA > 105 dB
- For 1000 MHz - 2000 MHz => SA > 95 dB
- For 2000 MHz - 3000 MHz => SA > 85 dB
Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.
| Model | SK2015plus | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable type | RG-6 | |||||||||||||||||||||
| Standard | EN 50117-9-2 | |||||||||||||||||||||
| Euroclass | Cca | |||||||||||||||||||||
| Euroclass: Smoke Production | s1a | |||||||||||||||||||||
| Euroclass: Flaming droplets | d1 | |||||||||||||||||||||
| Euroclass: Acidity | a1 | |||||||||||||||||||||
| Class | A++ | |||||||||||||||||||||
| Inner conductor Diameter | mm | 1.05 | ||||||||||||||||||||
| Inner conductor Material | Copper (Cu) | |||||||||||||||||||||
| Inner conductor Resistance | Ω/km | < 22 | ||||||||||||||||||||
| Dielectric Diameter | mm | 4.65 | ||||||||||||||||||||
| Dielectric Material | Foam polyethylene (PEE) | |||||||||||||||||||||
| Dielectric Color | Orange RAL 1007 | |||||||||||||||||||||
| Overlapped foil | Aluminium + Polyester | |||||||||||||||||||||
| Braid Material | Tinned copper (CuSn) | |||||||||||||||||||||
| Braid dimensions: No. of carriers (Nc) | 24 | |||||||||||||||||||||
| Braid Dimensions: No. of strands per carrier (Ns) | 7 | |||||||||||||||||||||
| Braid Dimensions: strand diameter (Ø) | mm | 0.1 | ||||||||||||||||||||
| Braid Resistance | Ω/km | < 10.5 | ||||||||||||||||||||
| Braid Coverage | % | 82 | ||||||||||||||||||||
| 2nd foil | Yes | |||||||||||||||||||||
| 2nd foil glued to the dielectric | No | |||||||||||||||||||||
| Petrol-Jelly | No | |||||||||||||||||||||
| Anti-migrating film | No | |||||||||||||||||||||
| Outer sheath Diameter | mm | 6.9 | ||||||||||||||||||||
| Outer sheath Material | LSFH, UV-resistant | |||||||||||||||||||||
| Minimum bending radius | mm | 34.5 | ||||||||||||||||||||
| Transfer impedance (5-30MHz) | mΩ/m | < 0.9 | ||||||||||||||||||||
| 1GHz shielding | dB | > 105 | ||||||||||||||||||||
| Spark Test | Vac | 3000 | ||||||||||||||||||||
| Capacitance | pF/m | 54 | ||||||||||||||||||||
| Impedance | Ω | 75 | ||||||||||||||||||||
| Velocity ratio | % | 84 | ||||||||||||||||||||
| Operating temperature | °C | -25 ... 70 | ||||||||||||||||||||
| Frequencies |
| |||||||||||||||||||||
| Attenuation (typ.) | dB/m |
| ||||||||||||||||||||
| Return losses (min.) | dB |
|
-
Declaration of performance
DOP01190006_1_414901.pdf
(0.22 MB) -
Declaration of performance
DOP01190007_1_414902.pdf
(0.22 MB) -
Declaration of Conformity
DOC07220052_0_414901.pdf
(0.21 MB) -
Declaration of Conformity
DOC07220053_0_414902.pdf
(0.21 MB) -
Technical specifications
technical_specifications_en_US_TEC05210248_414901.pdf
(0.12 MB) -
Technical specifications
technical_specifications_en_US_TEC05210249_414902.pdf
(0.12 MB) -
Product Sheet
414901_en_US_product_sheet_PSH01231745.pdf
(0.24 MB) -
Product Sheet
414902_en_US_product_sheet_PSH01231746.pdf
(0.24 MB)
Mounting details

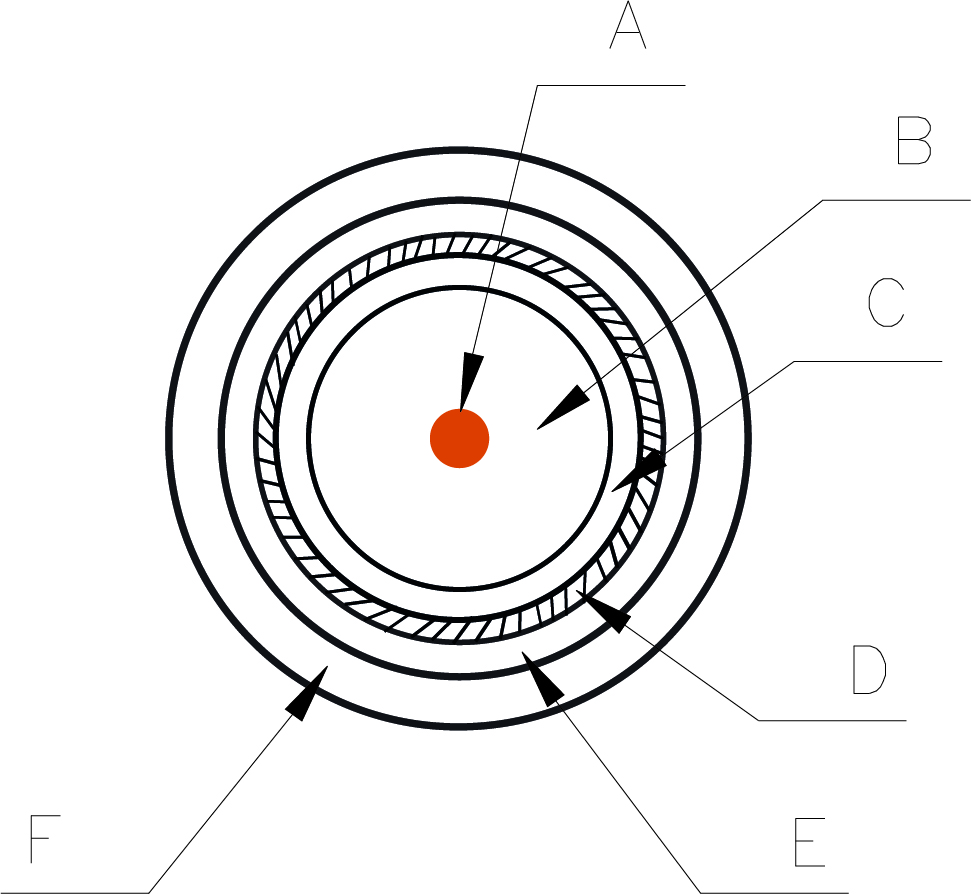

DETAIL VIEW OF THE COAXIAL CABLE SECTION
A-Inner conductor
B-Dielectric
C-Foil
D-Braid
E-Second foil
F-Outer sheath
