IEC 2W Plug-in Splitter VHF/UHF (1 Male - 2 Female)

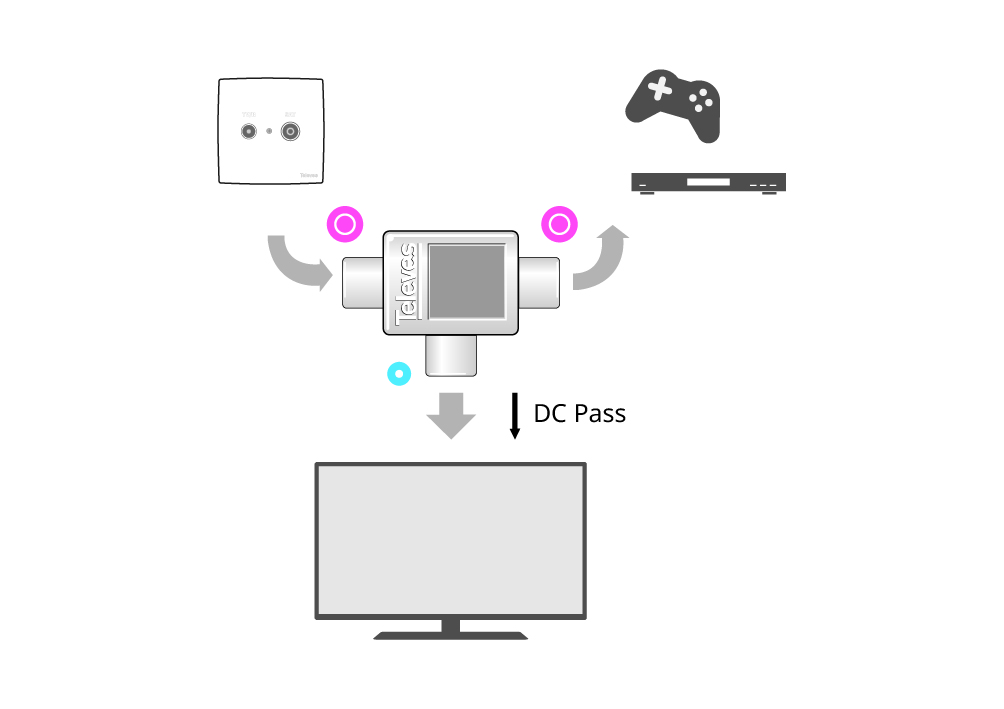

Indoor installation, usually in outlets or TV sets.
- IEC connectors
- Plug-in shielded chassis
- DC pass on one output
| Frequency range | MHz | 174 ... 862 | |
|---|---|---|---|
| Number of outputs | 2 | ||
| Through losses | dB |
| |
| Rejection between outputs | dB |
| |
| Connectors | "IEC" type | ||
| Max. current | A | 1 | |
| DC pass | Out→In |
Physical data
Net weight: 50 g
Gross weight: 50 g
Width: 16 mm
Height: 51 mm
Depth: 16 mm
Main product weight: 8 g
Packing
Bag 1 Units
Bag 10 Units
| tlv_discontinued | No | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tlv_reflog | VRF2N | |||||||||||||||||||||||
| tlv_tabla_especificaciones |
|
|||||||||||||||||||||||
| tlv_ean | 8424450043202 | |||||||||||||||||||||||
| tlv_dim_product_x | 16 | |||||||||||||||||||||||
| tlv_dim_product_x_label | Width | |||||||||||||||||||||||
| tlv_dim_product_x_unit | mm | |||||||||||||||||||||||
| tlv_dim_product_y | 51 | |||||||||||||||||||||||
| tlv_dim_product_y_label | Height | |||||||||||||||||||||||
| tlv_dim_product_y_unit | mm | |||||||||||||||||||||||
| tlv_dim_product_z | 16 | |||||||||||||||||||||||
| tlv_dim_product_z_label | Depth | |||||||||||||||||||||||
| tlv_dim_product_z_unit | mm | |||||||||||||||||||||||
| tlv_weight_product_label | Main product weight | |||||||||||||||||||||||
| tlv_weight_product | 8 | |||||||||||||||||||||||
| tlv_weight_product_unit | g | |||||||||||||||||||||||
| tlv_gross_weight_label | Gross weight | |||||||||||||||||||||||
| tlv_gross_weight | 50 | |||||||||||||||||||||||
| tlv_gross_weight_unit | g | |||||||||||||||||||||||
| tlv_net_weight_label | Net weight | |||||||||||||||||||||||
| tlv_net_weight_unit | g | |||||||||||||||||||||||
| tlv_net_weight | 50 | |||||||||||||||||||||||
| tlv_1_type_pack | Bag | |||||||||||||||||||||||
| tlv_1_type_pcs_pack | Units | |||||||||||||||||||||||
| tlv_1_pcs_pack | 1 | |||||||||||||||||||||||
| tlv_2_pcs_pack | 10 | |||||||||||||||||||||||
| tlv_2_type_pack | Bag | |||||||||||||||||||||||
| tlv_2_type_pcs_pack | Units |
-
AutoCAD drawing
4320 - Repartidor_CEI_1M_2H_DC_10_Sin_CAD07190464.dwg
(0.08 MB) -
Declaration of Conformity (in)
DOC01220089_0.pdf
(0.21 MB) -
Technical specifications (in)
technical_specifications_en_US_TEC09210019_4320.pdf
(0.11 MB) -
Product Sheet (in)
4320_en_US_product_sheet_PSH01230665.pdf
(0.09 MB)
