AVANT 12 Lite programmable multiband amplifier for terrestrial, 20 digital filters and auto/advanced programming via ASuite (Bluetooth®)
Multi-input multiband amplifier, perfect for individual or MDU (Multi Dwelling Unit) terrestrial installations, that allows individual programming of channels available on 2 VHF+UHF (DTT) inputs, in a total of 20 digital filters. The multiband amplifier has 4 inputs: FM-DAB-2xUHF, and can achieve programmable amplification and balancing of the different RF inputs. In addition, it includes 4G/5G filtering, making the device discriminate by itself the programming of the filters up to channel 48 (LTE700).
Thanks to the built-in Bluetooth® antenna, it is possible to carry out advanced programming of the multiband amplifier wirelessly from a smartphone or tablet (Android/iOS), with the ASuite application. With this application, the professional user can perform a wide range of functions:
- Channel filter programming
- Channel level autoadjust for balancing all filters
- Manual fine-adjust after the autoadjust for each channel separately
- Activation of the antenna powering
- Import/export configurations
In addition, it also includes an autoprogramming function, executable from ASuite, with which the device uses its intelligence and programs itself, searching and selecting the most outstanding channels and, afterwards, balancing the signal level between them.
RED compliant
- With the ASuite application, advanced programming of the device can be carried out wirelessly (Bluetooth®), easily and conveniently from a smartphone or tablet (Android/iOS)
- Single amplifier with 4 inputs: 2 inputs support VHF/UHF, one input is for DAB and the other for FM
- High output level: up to 114dBµV (DIN45004B), to reach a large number of outlets
- Autoprogramming: with this function available in ASuite, the device performs channel assignment and level adjustment by itself, as well as activating the antenna powering when it detects that the signal requires it
- Up to 32 individually programmable filters, with individual digital filtering of each channel, including adjacent channels
- Digital processing of the channels, resulting in a perfectly balanced signal level between the different channels at the output
- Automatic signal regulation in each filter (AGC). Also allows fine adjust of the output level after regulation
- High selectivity VHF/UHF digital filters: >30dB rejection (@ 1MHz)
- SAW (Surface Acoustic Wave) filter for rejection of 4G/5G signals from channel 48, with the best selectivity and stability
- DVB-T and DVB-T2 compatible
- TForce technology: terrestrial signal level is always balanced and adjusted to the optimum value
- Power supply at the inputs for antenna powering, when the signal requires it
- LED status indicator as well as physical autoadjust button built into the control panel
- High shielding chassis (Zamak) to protect against electromagnetic interference
- Very light and compact size for a high performance control unit (196x122x43mm)
- 100% European design and manufacture: fully automated manufacturing and subjected to rigorous quality controls
Physical data
Net weight: 982 g
Gross weight: 1,150 g
Width: 201 mm
Height: 120 mm
Depth: 42 mm
Main product weight: 924 g
Packing
Box 1 Units
| tlv_discontinued | No |
|---|---|
| tlv_reflog | AVANT12LITE |
| tlv_ean | 8424450329986 |
| tlv_dim_product_x | 201 |
| tlv_dim_product_x_label | Width |
| tlv_dim_product_x_unit | mm |
| tlv_dim_product_y | 120 |
| tlv_dim_product_y_label | Height |
| tlv_dim_product_y_unit | mm |
| tlv_dim_product_z | 42 |
| tlv_dim_product_z_label | Depth |
| tlv_dim_product_z_unit | mm |
| tlv_weight_product_label | Main product weight |
| tlv_weight_product | 924 |
| tlv_weight_product_unit | g |
| tlv_gross_weight_label | Gross weight |
| tlv_gross_weight | 1,150 |
| tlv_gross_weight_unit | g |
| tlv_net_weight_label | Net weight |
| tlv_net_weight_unit | g |
| tlv_net_weight | 982 |
| tlv_1_type_pack | Box |
| tlv_1_type_pcs_pack | Units |
| tlv_1_pcs_pack | 1 |

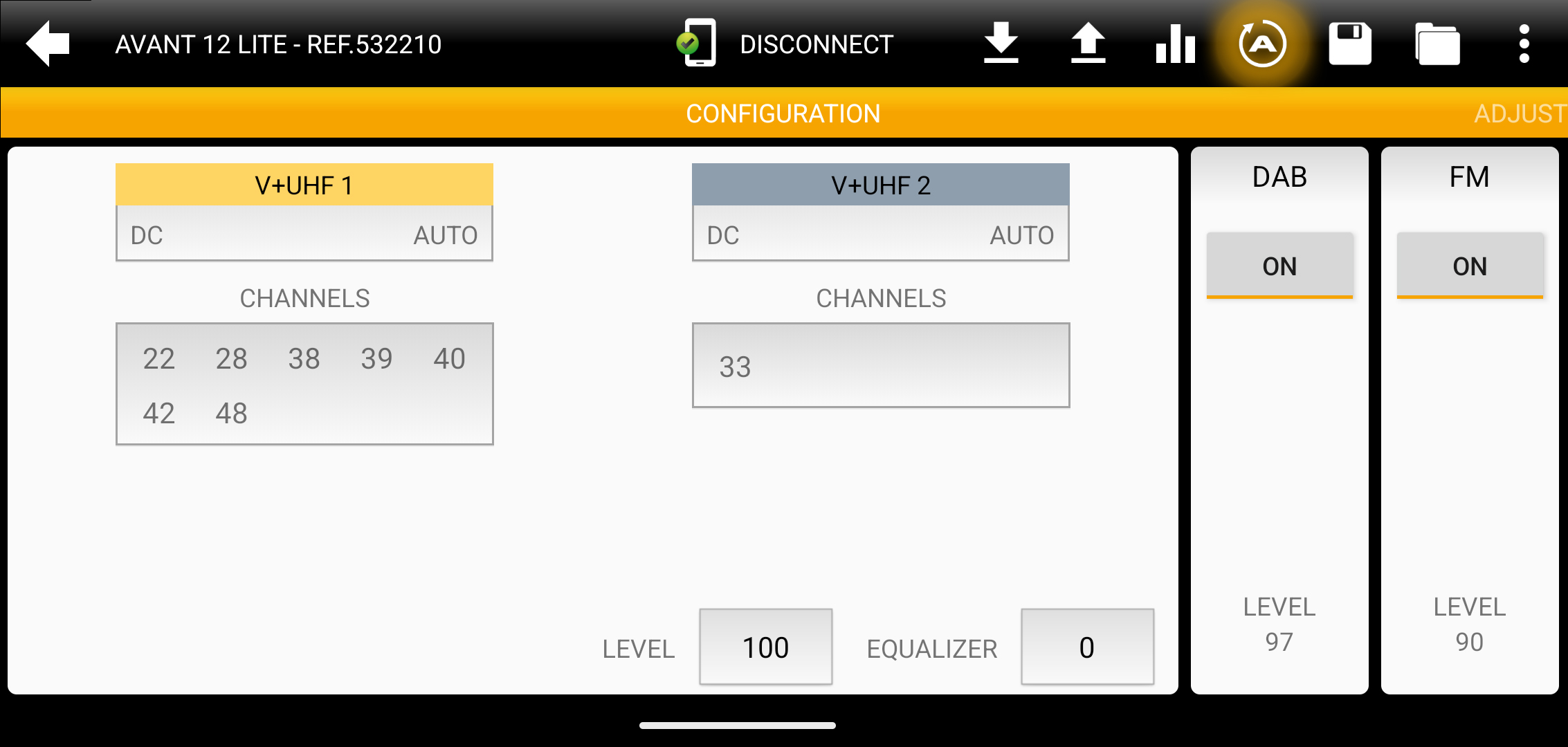

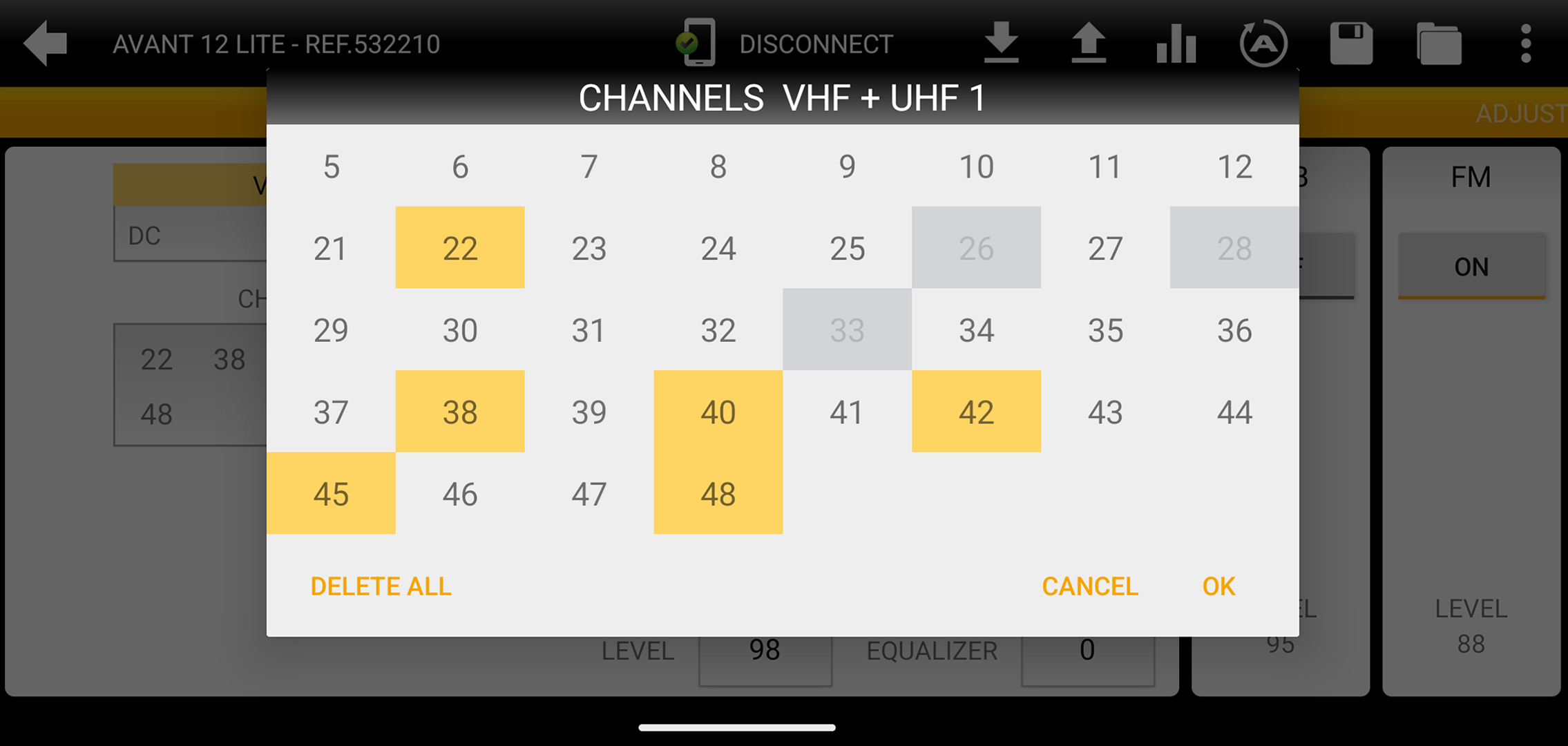

Channel filter programming
The desired channels are selected from each of the available inputs, assigning a filter to each of them up to a maximum of 20.
Autoprogramming
This function processes the channels at the inputs, selecting the most prominent ones and assigning a filter to each of them. Afterwards, it performs an autoadjust to balance the signal level of the filtered channels. All of this in less than 1 minute.

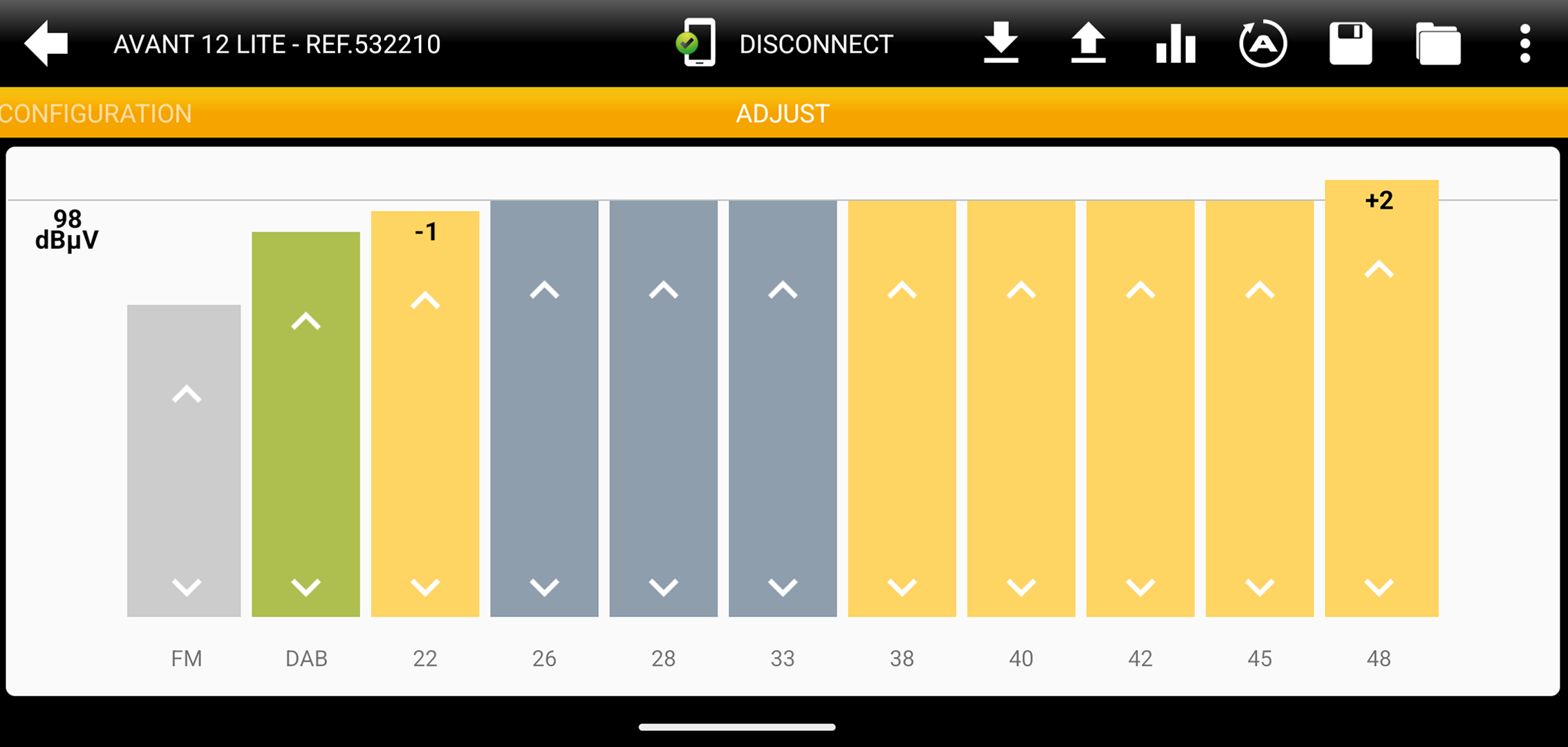

Channel level autoadjust
The signal level of each channel is automatically processed by the device, bringing out the maximum possible level and balancing all filtered channels, so that there are no signal fluctuations between them.
Channel level manual fine adjustment
ASuite allows a further adjustment of ± 3dB to the previously autoadjust. It is carried out manually and independently for each filter, for those channels that require a finer adjustment.

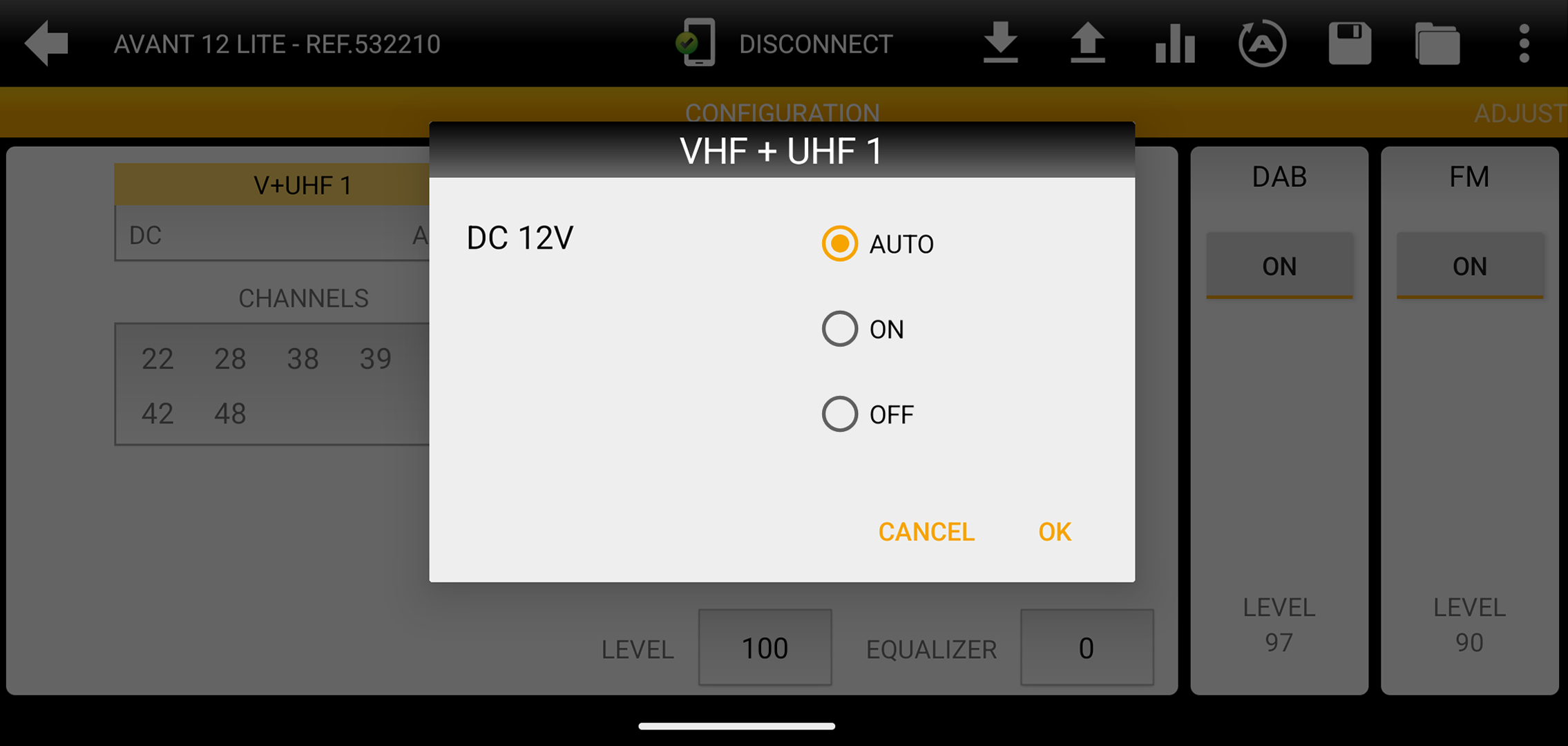

Antenna power supply switching
It manages the flow of current through each of the inputs to power antennas or preamps, when the processed signal requires it.
Import/Export configurations
ASuite offers saving of configurations, as well as the loading of previously stored ones, saving time to the professional in the installation.
-
