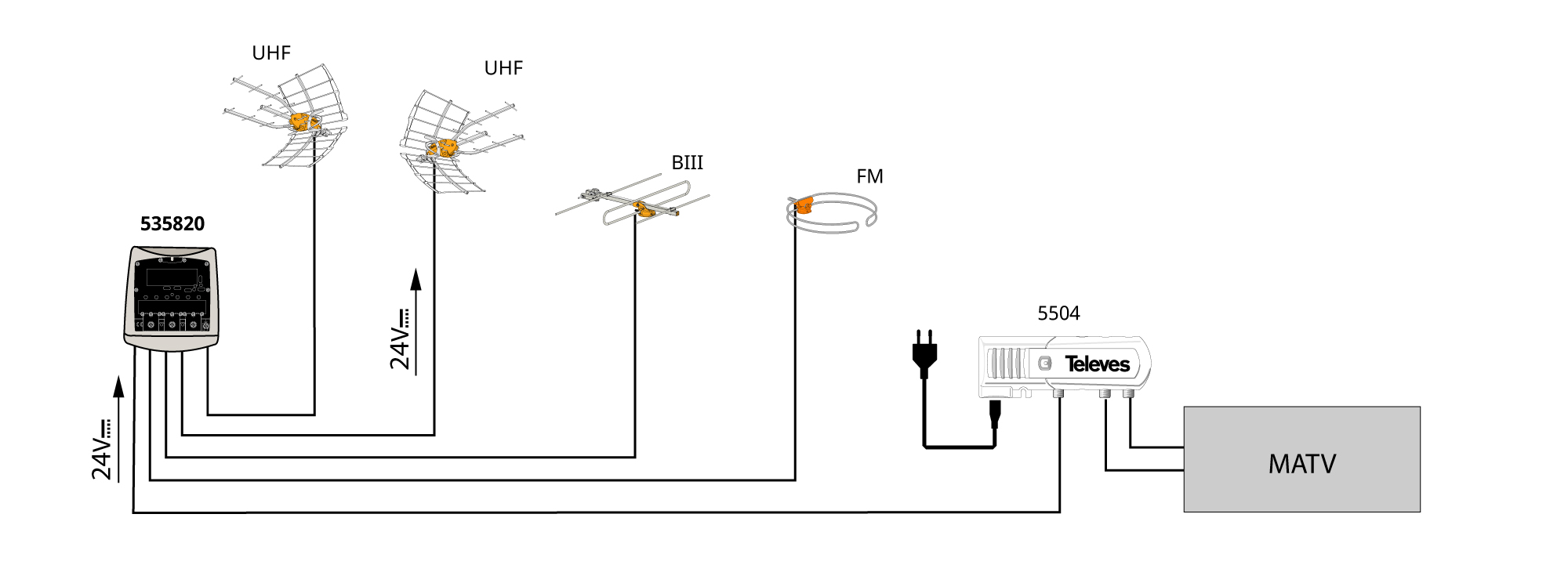

Masthead amplifier for the amplification of terrestrial television signals coming from several antennas.
Equipped with 4 inputs, with amplification on all bands. The amplifier is powered through the output coaxial cable with 24 Vdc.

RED compliant.

Ref. 535820
Product Sheet
EAN13: 8424450215012
SKU
535820
Highlights
  • Independent amplification for each individual band
  • Manually-adjusted high-gain
  • EasyF connection system
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis
  • LTE700/5G filter to remove mobile phone interference
  • ON/OFF switch to allow DC pass towards one of the UHF input for the powering of a BOSS system
  • Easy mounting. Equipped with a plastic tie for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Discover

EasyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

  • Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
  • Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
  • Cost savings: no additional connectors are required (neither F nor IEC)
  • Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
  • Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device's cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

  • Always as new: the device's operating life increases when the factor of solder wearing out with time is removed
  • Failure rate reduction: usually produced as a result of cold soldering joints
  • Electromagnetic behaviour optimization: for high frequencies
  • Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced

Bands
FMBIIIUHF
Frequency rangeMHz
88 ... 108174 ... 254470 ... 694
GaindB
15 32 36
Gain adjustment rangedB
0 ... 200 ... 200 ... 20
Output level DIN45004BdBµV
115 115 116
Output level EN60728-3 IMD3 2tones -35dBdBµV
122 122 123
Output level EN60728-3 IMD3 2tones -60dBdBµV
112 112 113
Noise figuredB
--4 9
Number of inputs4
Inputs/Bands
FMBIII/DABUHF 1UHF 2
Max current inputmA
0 0 45 0
PoweringVdc24
Current consumptionmA80
Protection index (IP)23
Operating temperature°C -5 ... 45

Physical data

Net weight: 365 g

Gross weight: 365 g

Width: 126 mm

Height: 136 mm

Depth: 40 mm

Main product weight: 363 g

Packing

Box 1 Units

Carton 5 Units

More Information
