EuroSwitch amplifier 17 inputs 27/31 dB

Compact and effective for large installations

Compact amplifier equipped with 17 inputs (one terrestrial and the four polarities of four satellites) that allows increasing the number of users in the installation while optimizing the signal received by each of them. Amplification around 27 dB for terrestrial, and 31 dB for satellite.

RED compliant

Ref. 719809
Codes
Product Sheet
EAN13: 8424450211564
SKU
719809
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • Very compact in dimensions and weight
  • High output level
  • Gain (20 dB) and slope (12 dB) individual adjustment
  • Switch to supply power to the terrestrial trunk line (TERR. DC), allowing to power headend installed elements such as intelligent antennas or amplifiers
  • Two powering options: From the power supply, or from the cascade through the satellite inputs or outputs
  • 100% european design, quality, and manufacturing

Main features
  • High shielding (A class) thanks to its manufacture in Zamak
  • Low power consumption
  • Wide 12-18V power supply range, making it compatible with most existing systems
  • Input and output colour identification

Number of inputs17
Number of outputs17
Bands
TERRSAT
Frequency rangeMHz
88 ... 862950 ... 2400
Output leveldBµV
114 118
GaindB
27 31
Gain adjustment rangedB 0 ... 20
Slope regulationdB 0 ... 12
IsolationdB > 30
PoweringVdc 12 ... 18
Max current consumption (@12V)mA1150
Max current consumption (@18V)mA765
Max. power consumptionW13.8
Operating temperature°C -5 ... 45
Protection index (IP)20

Physical data

Net weight: 880 g

Gross weight: 1,030 g

Width: 350 mm

Height: 120 mm

Depth: 30 mm

Main product weight: 880 g

Packing

Box 1 Units

More Information
tlv_slogan Compact and effective for large installations
tlv_reflog MSE1727V
tlv_tabla_especificaciones
Number of inputs17
Number of outputs17
Bands
TERRSAT
Frequency rangeMHz
88 ... 862950 ... 2400
Output leveldBµV
114 118
GaindB
27 31
Gain adjustment rangedB 0 ... 20
Slope regulationdB 0 ... 12
IsolationdB > 30
PoweringVdc 12 ... 18
Max current consumption (@12V)mA1150
Max current consumption (@18V)mA765
Max. power consumptionW13.8
Operating temperature°C -5 ... 45
Protection index (IP)20
tlv_ean 8424450211564
tlv_dim_product_x 350
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 120
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 30
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 880
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 1,030
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 880
tlv_1_type_pack Box
tlv_1_type_pcs_pack Units
tlv_1_pcs_pack 1

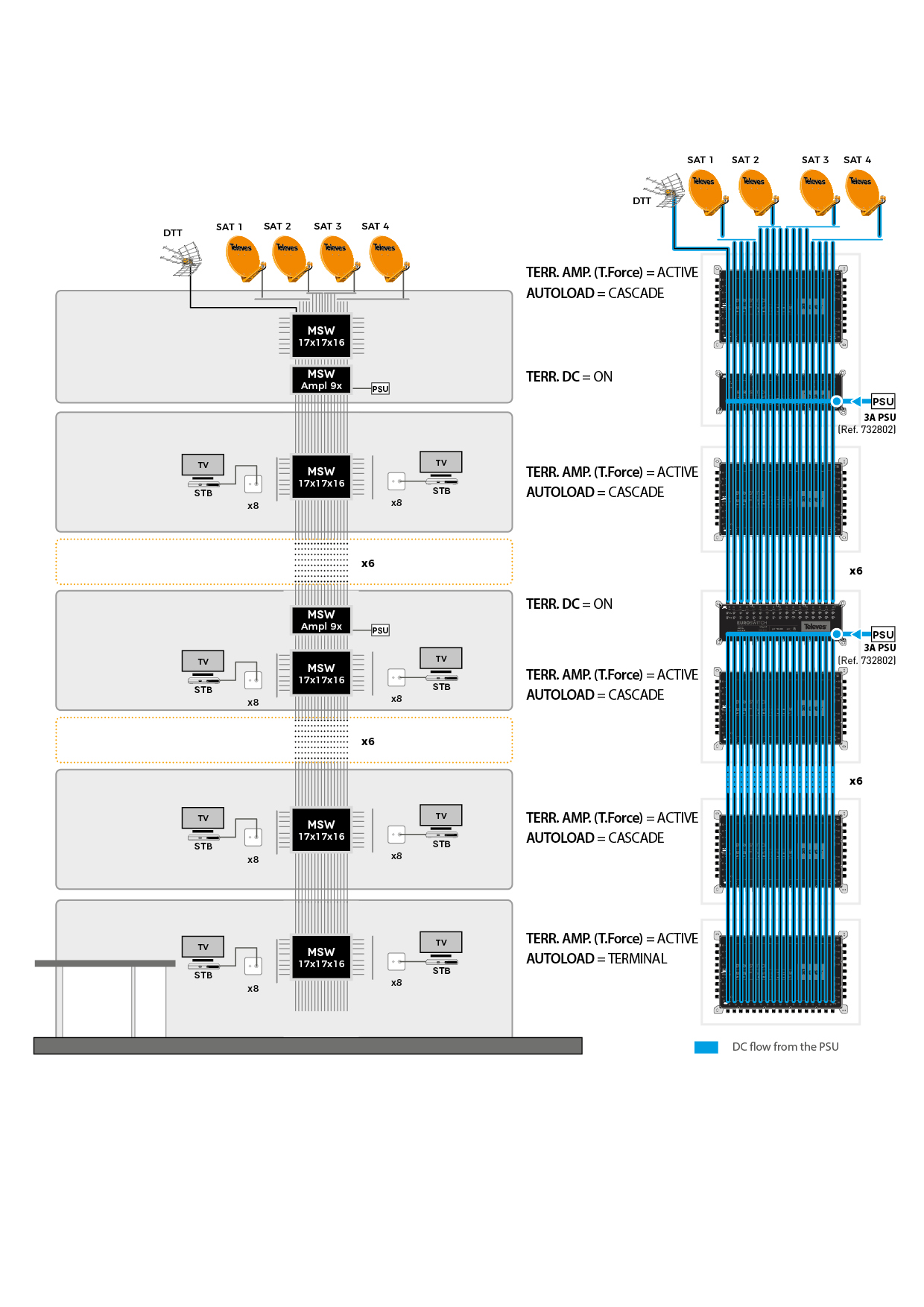

Installation into a large building (4 satellites)

The LNBs, terrestrial antenna and the whole cascade is powered by various 3A PSUs. The number of PSUs in the system will be carried out as a function of the total power consumption of the installation.
In case of using amplifiers, these will be the recommended elements to place the power supply units.

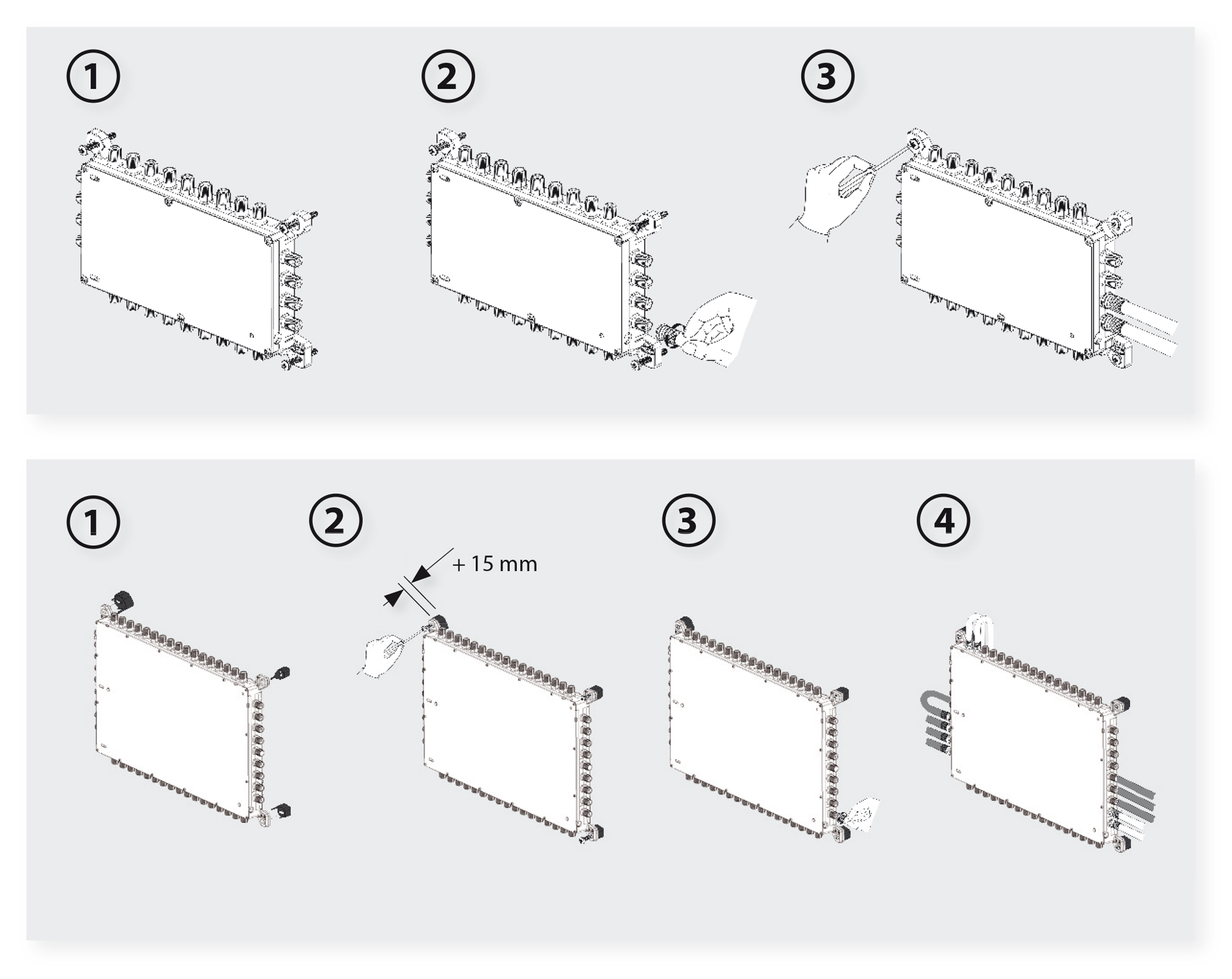

Mounting details
