  • MiniKom F broadband multiband amplifier 4 inputs: FM-BIII-UHF-SAT
MiniKom F broadband multiband amplifier 2 inputs: VHF/UHF-SAT (Terrestrial mix)

MiniKom F broadband multiband amplifier 2 inputs: VHF/UHF-SAT (Terrestrial mix)

MiniKom F broadband multiband amplifier 4 inputs: FM-BIII-UHF-SAT

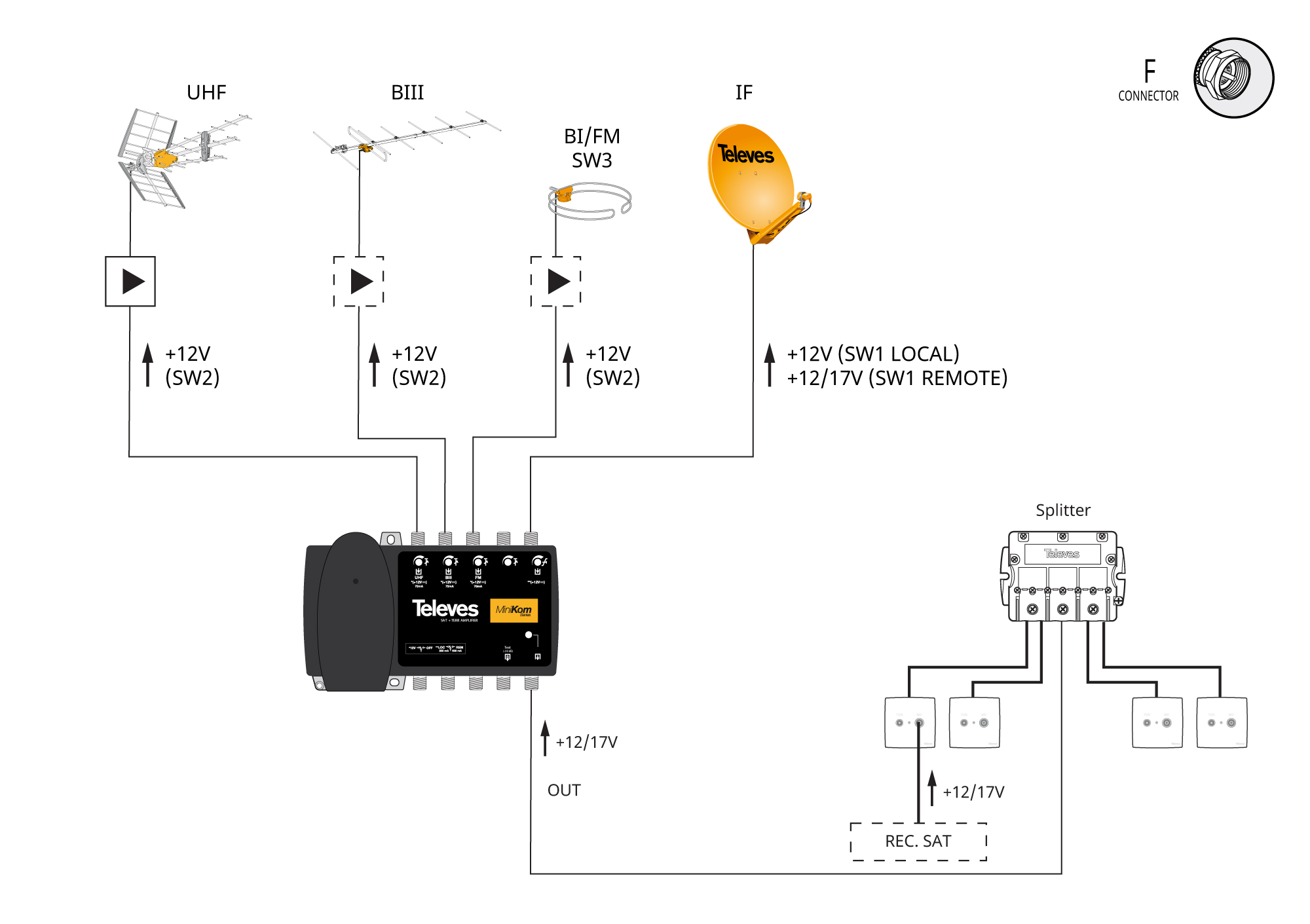

4-input multiband amplifier (FM-BIII-UHF-SAT) for SMATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators.

Ref. 539620
Codes
Product Sheet
EAN13: 8424450208427
SKU
539620
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • Separate amplification enhance the output level without causing any interference among bands
  • PIN-diode technology gain attenuators on each input (0 dB-20 dB)
  • High output level
  • High-screening Zamak chassis

Main features
  • “F” connectors
  • SAT equalizer
  • Output signal LED indicator
  • Power selection switch for LNB: local (low-V) or remote
  • Switch for pre-amplifier or BOSS system powering
  • Test output (-30 dB)
  • Can be wall-mounted using screws

Bands
FMBIIIUHFSAT
Frequency rangeMHz
88 ... 108174 ... 254470 ... 694950 ... 2150
High gaindB
17 35 39 41
Low gaindB
------35
Gain adjustment rangedB
0 ... 180 ... 200 ... 200 ... 20
Noise figuredB
9 6 7 10
Output level EN50083 IMD3 2tones -60dBdBµV
121 121 121 124
Output level DIN45004BdBµV
113 113 117 --
Output level EN50083 IMD3 2tones -60dBdBµV
110 110 114 --
EqualizatordB
------0 ... 15
Powering per inputsVdc
12 12 12 --
Max current inputmA
70 70 70 --
Powering LNB - LocalVdc
------12
Max. local current for LNBmA
------300
Powering LNB - RemoteVdc
------12
Max. remote current for LNBmA
------500
Max. power consumptionW10
Max. currentmA190
Input voltageVac 110 ... 230
Mains frequency50 Hz / 60 Hz
Number of inputs4
Number of outputs1
Connectors"F" type
Operating temperature°C -5 ... 45
Protection index (IP)20

Physical data

Net weight: 888 g

Gross weight: 1,044 g

Width: 182 mm

Height: 117 mm

Depth: 57 mm

Main product weight: 888 g

Packing

Box 1 Units

More Information
tlv_tabla_especificaciones
Bands
FMBIIIUHFSAT
Frequency rangeMHz
88 ... 108174 ... 254470 ... 694950 ... 2150
High gaindB
17 35 39 41
Low gaindB
------35
Gain adjustment rangedB
0 ... 180 ... 200 ... 200 ... 20
Noise figuredB
9 6 7 10
Output level EN50083 IMD3 2tones -60dBdBµV
121 121 121 124
Output level DIN45004BdBµV
113 113 117 --
Output level EN50083 IMD3 2tones -60dBdBµV
110 110 114 --
EqualizatordB
------0 ... 15
Powering per inputsVdc
12 12 12 --
Max current inputmA
70 70 70 --
Powering LNB - LocalVdc
------12
Max. local current for LNBmA
------300
Powering LNB - RemoteVdc
------12
Max. remote current for LNBmA
------500
Max. power consumptionW10
Max. currentmA190
Input voltageVac 110 ... 230
Mains frequency50 Hz / 60 Hz
Number of inputs4
Number of outputs1
Connectors"F" type
Operating temperature°C -5 ... 45
Protection index (IP)20
tlv_ean 8424450208427
tlv_dim_product_x 182
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 117
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 57
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 888
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 1,044
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 888
tlv_1_type_pack Box
tlv_1_type_pcs_pack Units
tlv_1_pcs_pack 1

NOTE: To avoid damaging the amplifier, we strongly recommend switching OFF the amplifier until the installation process has been completed.
