K21 compact headend DVBS2X - DVBC (QAM), 8 to 16 MUX

K21 Compact Headend with Remultiplexing, DVBS2X - DVBC (QAM) with 4 CI, 8 MUX

K21 compact headend DVBS2X - DVBC (QAM), 8 to 16 MUX

Compact headend that generates QAM multiplex from transparent transmodulation of services available on DVB-S/-S2-S2X transponders. A stand-alone solution with just an electrical plug (built-in PSU).

The headend has 4 satellite inputs that can be configured in:

Quattro mode for the four polarities of 1 satellite (VL/HL/ VH/ HH)
WideBand mode for the two polarities of 2 satellites (V/H)

In addition, it is possible to combine two K21 headends together to achieve a larger number of satellite transponders. Both devices will be connected in loop mode (cascade), and it can be possible to manage the configuration of the whole solution with one of the K21 units set in master mode.

The headend allows its configuration through a web interface, accessible via Ethernet or through a WiFi network (adapter ref. 216802 required). With the embedded interface, it is possible to perform a complete configuration in seconds by using preloaded programs, or by cloning configurations from other installations.

In stock

SKU

57030x_Cabeceras_K21

Select your product

Grouped product items
Ref. 570301 Number of transponders: 8TP Codes EAN13: 8424450330692
Ref. 570302 Number of transponders: 12TP Codes EAN13: 8424450330708
Ref. 570303 Number of transponders: 16TP Codes EAN13: 8424450330715
Ref. 570304 Number of transponders: 20TP Codes EAN13: 8424450331286
Ref. 570305 Number of transponders: 24TP Codes EAN13: 8424450331293

Product Sheet

Skip to the end of the images gallery

Televes reserves the right to modify the product

Skip to the beginning of the images gallery

Highlights

"Ready-to-work" solution: less cabling and shorter installation time
Embedded configuration web interface: accessible using a PC, smartphone or tablet, via Ethernet or WiFi connection and without installing any additional software
Quick and easy programming: through the selection of preloaded programs or by cloning configurations between different installations
Flexible number of input transponders: combination of two K21 units to obtain more transponders (up to 32). In this case, one of the units will be the master and the other the slave
High RF output level (up to 98 dBµV) and very low through losses (<1 dB)
SID and PID filtering, for removal of unwanted services
Editable LCN and SDT and NIT tables regeneration, making automatic search and services ideantification easier
Configurable EPG control, providing a better user experience
High shielded Zamak chassis (A class) to protect against electromagnetic interference
Excellent thermal management: rear heat sink and internal active ventilation
100% European design and manufacture: fully automated manufacturing and subjected to rigorous quality controls

Ref. 570301

SAT input	Input frequency		MHz	250...2350
	Symbol rate		Mbaud	2 - 45 (DVB-S) 10 - 30 (DVB-S2/S2X)
	Frequency steps		MHz	1
	Input level		dBμV	49 - 84
	Input and output connectors			"F"-Female
	Input impedance		Ohm	75
	LNB powering		Vdc/KHz	13V/17V/ OFF - 22KHz (ON/OFF)
	Satellite selection (DiSEqC)			A, B, C, D
	Modulation	DVB-S2X		QPSK/8PSK, 8/16/32 APSK (EN302307-2)
		DVB-S2		QPSK, 8PSK (EN302307)
		DVB-S		QPSK (EN300421)
	Internal FEC			LDPC (9/10, 8/9, 5/6, 4/5, 3/5, 3/4, 2/5, 2/3, 1/3, 1/4, 1/2)
	External FEC			BCH (Bose-Chaudhuri-Hocquenghem)
	Roll-Off factor		%	20, 25, 35
QAM modulator	Modulation format			16, 32, 64, 128, 256 QAM
	Symbol rate		Mbaud	1 - 7.2
	Roll-Off factor		%	15
	Block code			Reed Solomon (188, 204)
	Scrambling			DVB ET300429
	Interleaving			DVB ET300429
	Bandwith		MHz	8.28 max.
	Output spectrum (select.)			Normal / Inverted
RF Output	Output frequency (select.)		MHz	46...862
	Frequency steps		KHz	250
	Maximum output level (select.)		dBμV	98±5
	Attenuation		dB	0 - 15 (global) 0 - 10 (per channel)
	Through losses		dB	< 1
	Input/output connectors			"F"-Female
	Output impedance		Ohm	75
General	Power supply		V~ Hz	230 50/60
	Max. power consumption		W	40
	Max. current consumption		mA	450
	Protection index			IP20

Physical data

Net weight: 2,908 g

Gross weight: 3,135 g

Width: 333 mm

Height: 199 mm

Depth: 66 mm

Main product weight: 2,850 g

Packing

Box 1 Units

Ref. 570302

SAT input	Input frequency		MHz	250...2350
	Symbol rate		Mbaud	2 - 45 (DVB-S) 10 - 30 (DVB-S2/S2X)
	Frequency steps		MHz	1
	Input level		dBμV	49 - 84
	Input and output connectors			"F"-Female
	Input impedance		Ohm	75
	LNB powering		Vdc/KHz	13V/17V/ OFF - 22KHz (ON/OFF)
	Satellite selection (DiSEqC)			A, B, C, D
	Modulation	DVB-S2X		QPSK/8PSK, 8/16/32 APSK (EN302307-2)
		DVB-S2		QPSK, 8PSK (EN302307)
		DVB-S		QPSK (EN300421)
	Internal FEC			LDPC (9/10, 8/9, 5/6, 4/5, 3/5, 3/4, 2/5, 2/3, 1/3, 1/4, 1/2)
	External FEC			BCH (Bose-Chaudhuri-Hocquenghem)
	Roll-Off factor		%	20, 25, 35
QAM modulator	Modulation format			16, 32, 64, 128, 256 QAM
	Symbol rate		Mbaud	1 - 7.2
	Roll-Off factor		%	15
	Block code			Reed Solomon (188, 204)
	Scrambling			DVB ET300429
	Interleaving			DVB ET300429
	Bandwith		MHz	8.28 max.
	Output spectrum (select.)			Normal / Inverted
RF Output	Output frequency (select.)		MHz	46...862
	Frequency steps		KHz	250
	Maximum output level (select.)		dBμV	98±5
	Attenuation		dB	0 - 15 (global) 0 - 10 (per channel)
	Through losses		dB	< 1
	Input/output connectors			"F"-Female
	Output impedance		Ohm	75
General	Power supply		V~ Hz	230 50/60
	Max. power consumption		W	55
	Max. current consumption		mA	575
	Protection index			IP20

Physical data

Net weight: 2,908 g

Gross weight: 3,135 g

Width: 333 mm

Height: 199 mm

Depth: 66 mm

Main product weight: 2,850 g

Packing

Box 1 Units

Ref. 570303

SAT input	Input frequency		MHz	250...2350
	Symbol rate		Mbaud	2 - 45 (DVB-S) 10 - 30 (DVB-S2/S2X)
	Frequency steps		MHz	1
	Input level		dBμV	49 - 84
	Input and output connectors			"F"-Female
	Input impedance		Ohm	75
	LNB powering		Vdc/KHz	13V/17V/ OFF - 22KHz (ON/OFF)
	Satellite selection (DiSEqC)			A, B, C, D
	Modulation	DVB-S2X		QPSK/8PSK, 8/16/32 APSK (EN302307-2)
		DVB-S2		QPSK, 8PSK (EN302307)
		DVB-S		QPSK (EN300421)
	Internal FEC			LDPC (9/10, 8/9, 5/6, 4/5, 3/5, 3/4, 2/5, 2/3, 1/3, 1/4, 1/2)
	External FEC			BCH (Bose-Chaudhuri-Hocquenghem)
	Roll-Off factor		%	20, 25, 35
QAM modulator	Modulation format			16, 32, 64, 128, 256 QAM
	Symbol rate		Mbaud	1 - 7.2
	Roll-Off factor		%	15
	Block code			Reed Solomon (188, 204)
	Scrambling			DVB ET300429
	Interleaving			DVB ET300429
	Bandwith		MHz	8.28 max.
	Output spectrum (select.)			Normal / Inverted
RF Output	Output frequency (select.)		MHz	46...862
	Frequency steps		KHz	250
	Maximum output level (select.)		dBμV	98±5
	Attenuation		dB	0 - 15 (global) 0 - 10 (per channel)
	Through losses		dB	< 1
	Input/output connectors			"F"-Female
	Output impedance		Ohm	75
General	Power supply		V~ Hz	230 50/60
	Max. power consumption		W	60
	Max. current consumption		mA	625
	Protection index			IP20

Physical data

Net weight: 2,908 g

Gross weight: 3,135 g

Width: 351 mm

Height: 266 mm

Depth: 92 mm

Main product weight: 2,850 g

Packing

Box 1 Units

Ref. 570304

Physical data

Net weight: 2,850 g

Gross weight: 3,000 g

Width: 333 mm

Height: 199 mm

Depth: 66 mm

Main product weight: 2,850 g

Packing

Box 1 Units

Ref. 570305

Physical data

Net weight: 2,850 g

Gross weight: 3,000 g

Width: 333 mm

Height: 199 mm

Depth: 66 mm

Main product weight: 2,850 g

Packing

Box 1 Units

More Information

tlv_discontinued

tlv_reflog_group_search

K21-8,K21-12,K21-16,K21-20,K21-24

tlv_tabla_especificaciones

SAT input	Input frequency		MHz	250...2350
	Symbol rate		Mbaud	2 - 45 (DVB-S) 10 - 30 (DVB-S2/S2X)
	Frequency steps		MHz	1
	Input level		dBμV	49 - 84
	Input and output connectors			"F"-Female
	Input impedance		Ohm	75
	LNB powering		Vdc/KHz	13V/17V/ OFF - 22KHz (ON/OFF)
	Satellite selection (DiSEqC)			A, B, C, D
	Modulation	DVB-S2X		QPSK/8PSK, 8/16/32 APSK (EN302307-2)
		DVB-S2		QPSK, 8PSK (EN302307)
		DVB-S		QPSK (EN300421)
	Internal FEC			LDPC (9/10, 8/9, 5/6, 4/5, 3/5, 3/4, 2/5, 2/3, 1/3, 1/4, 1/2)
	External FEC			BCH (Bose-Chaudhuri-Hocquenghem)
	Roll-Off factor		%	20, 25, 35
QAM modulator	Modulation format			16, 32, 64, 128, 256 QAM
	Symbol rate		Mbaud	1 - 7.2
	Roll-Off factor		%	15
	Block code			Reed Solomon (188, 204)
	Scrambling			DVB ET300429
	Interleaving			DVB ET300429
	Bandwith		MHz	8.28 max.
	Output spectrum (select.)			Normal / Inverted
RF Output	Output frequency (select.)		MHz	46...862
	Frequency steps		KHz	250
	Maximum output level (select.)		dBμV	98±5
	Attenuation		dB	0 - 15 (global) 0 - 10 (per channel)
	Through losses		dB	< 1
	Input/output connectors			"F"-Female
	Output impedance		Ohm	75
General	Power supply		V~ Hz	230 50/60
	Max. power consumption		W	40
	Max. current consumption		mA	450
	Protection index			IP20

tlv_sku_group_search

570301,570302,570303,570304,570305

tlv_diferencias

Number of transponders: 8TP

tlv_dim_product_x

333

tlv_dim_product_x_label

Width

tlv_dim_product_x_unit

tlv_dim_product_y

199

tlv_dim_product_y_label

Height

tlv_dim_product_y_unit

tlv_dim_product_z

tlv_dim_product_z_label

Depth

tlv_dim_product_z_unit

tlv_weight_product_label

Main product weight

tlv_weight_product

2,850

tlv_weight_product_unit

tlv_gross_weight_label

Gross weight

tlv_gross_weight

3,135

tlv_gross_weight_unit

tlv_net_weight_label

Net weight

tlv_net_weight_unit

tlv_net_weight

2,908

tlv_1_type_pack

Box

tlv_1_type_pcs_pack

Units

tlv_1_pcs_pack

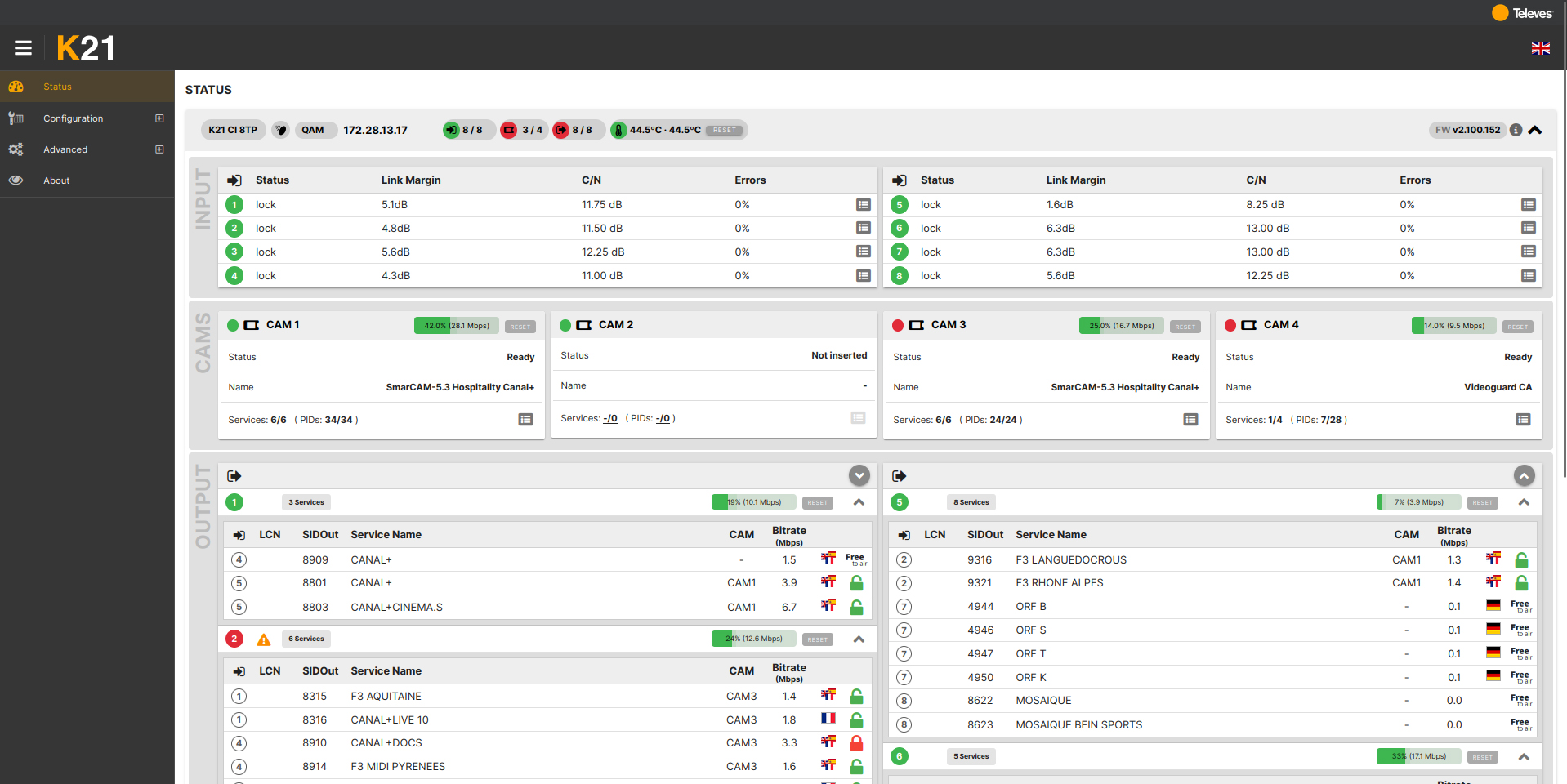

System status

Overview of the system configuration, with detailed information about inputs, CAM occupancy, output service programming and much more.

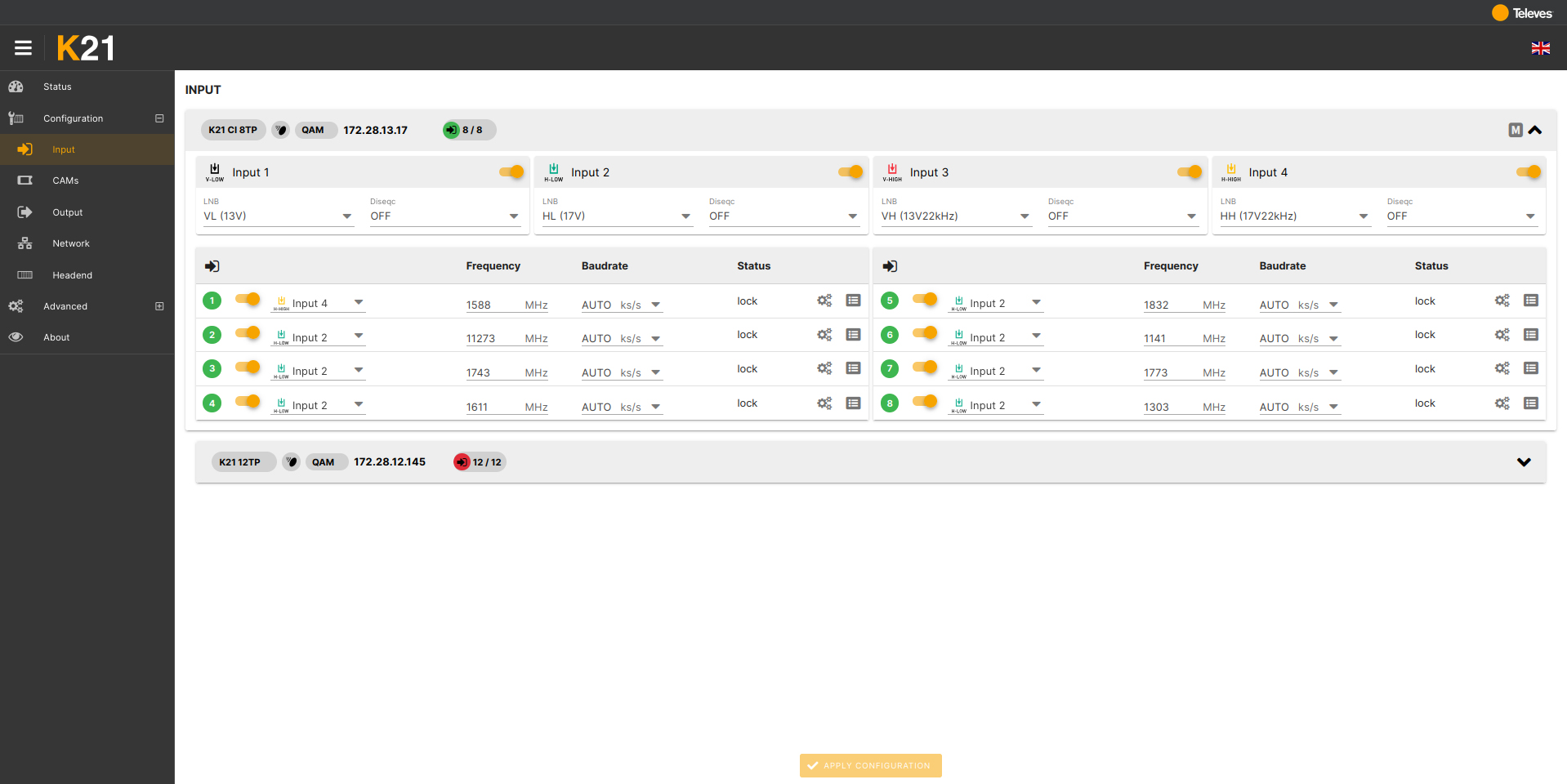

Input personalisation

Total control of the inputs from a single panel, with individually configurable multiple parameters and activation or deactivation of each input.

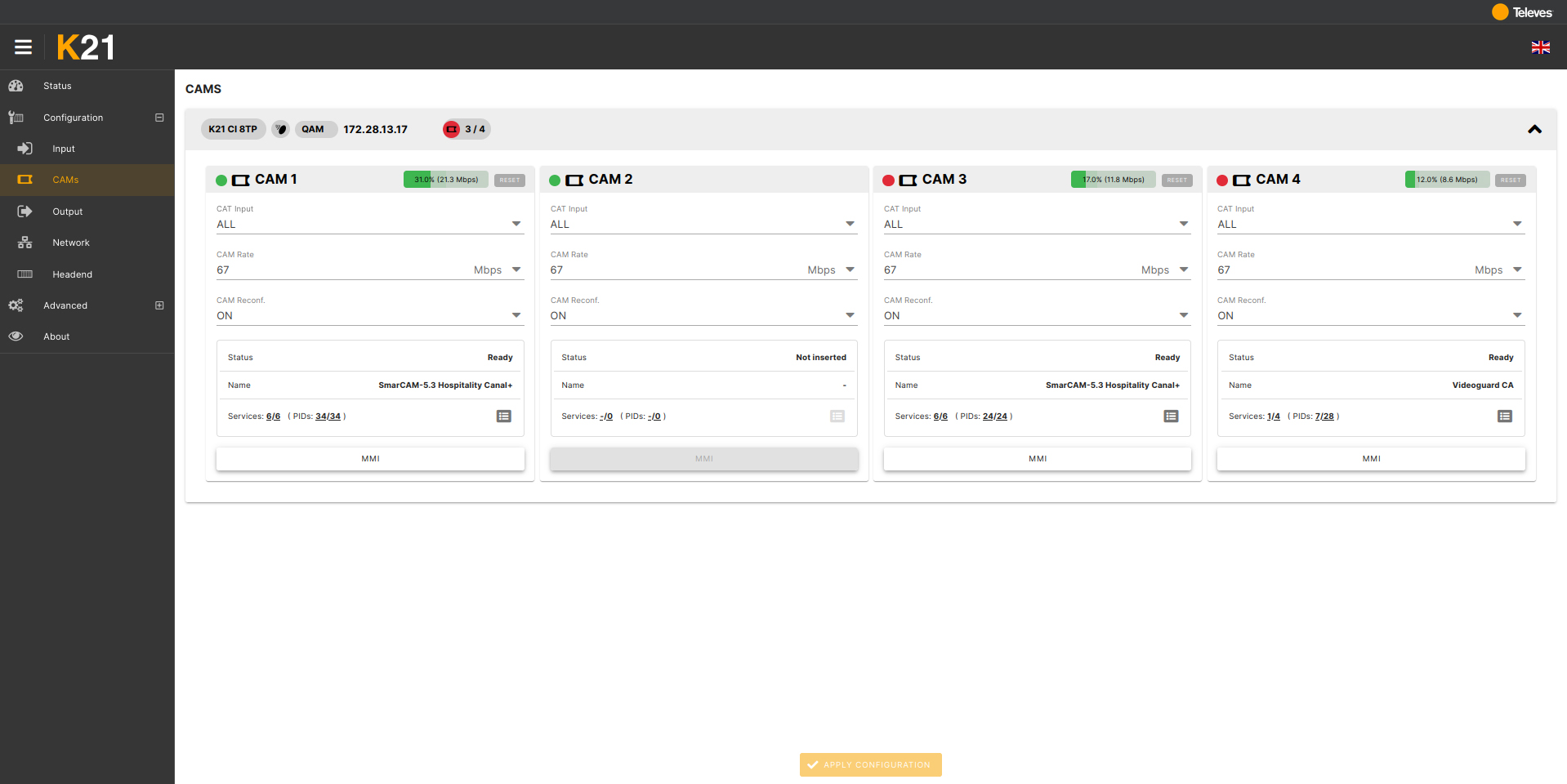

CAM management

Direct management of CAMs, with status information, decrypted services and visualisation of occupancy rates.

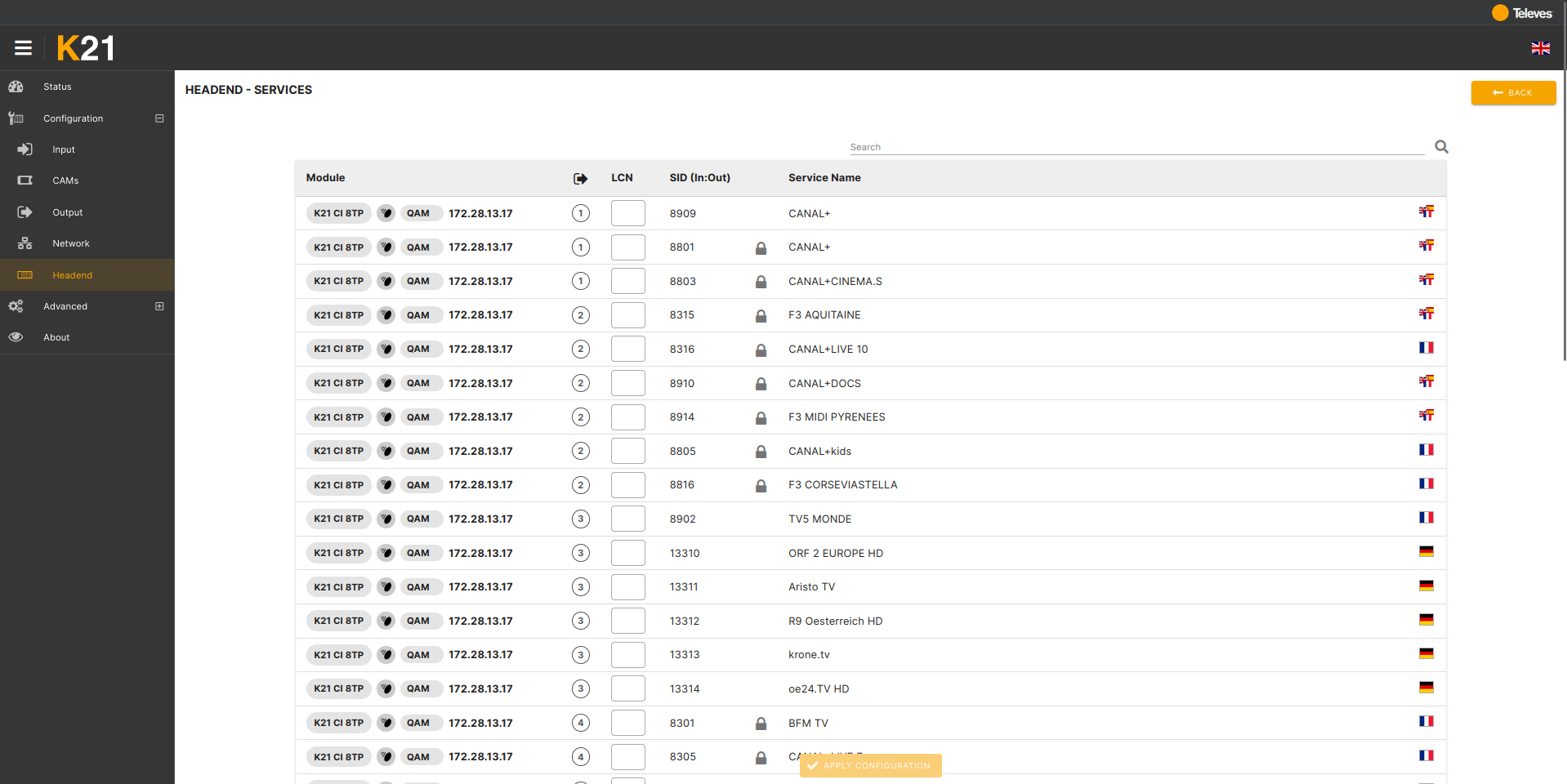

List of programmed services

Convenient and simple programming of the services at the output of each unit, with filtering functions (SID/PID) and edition of the order of services (LCN).

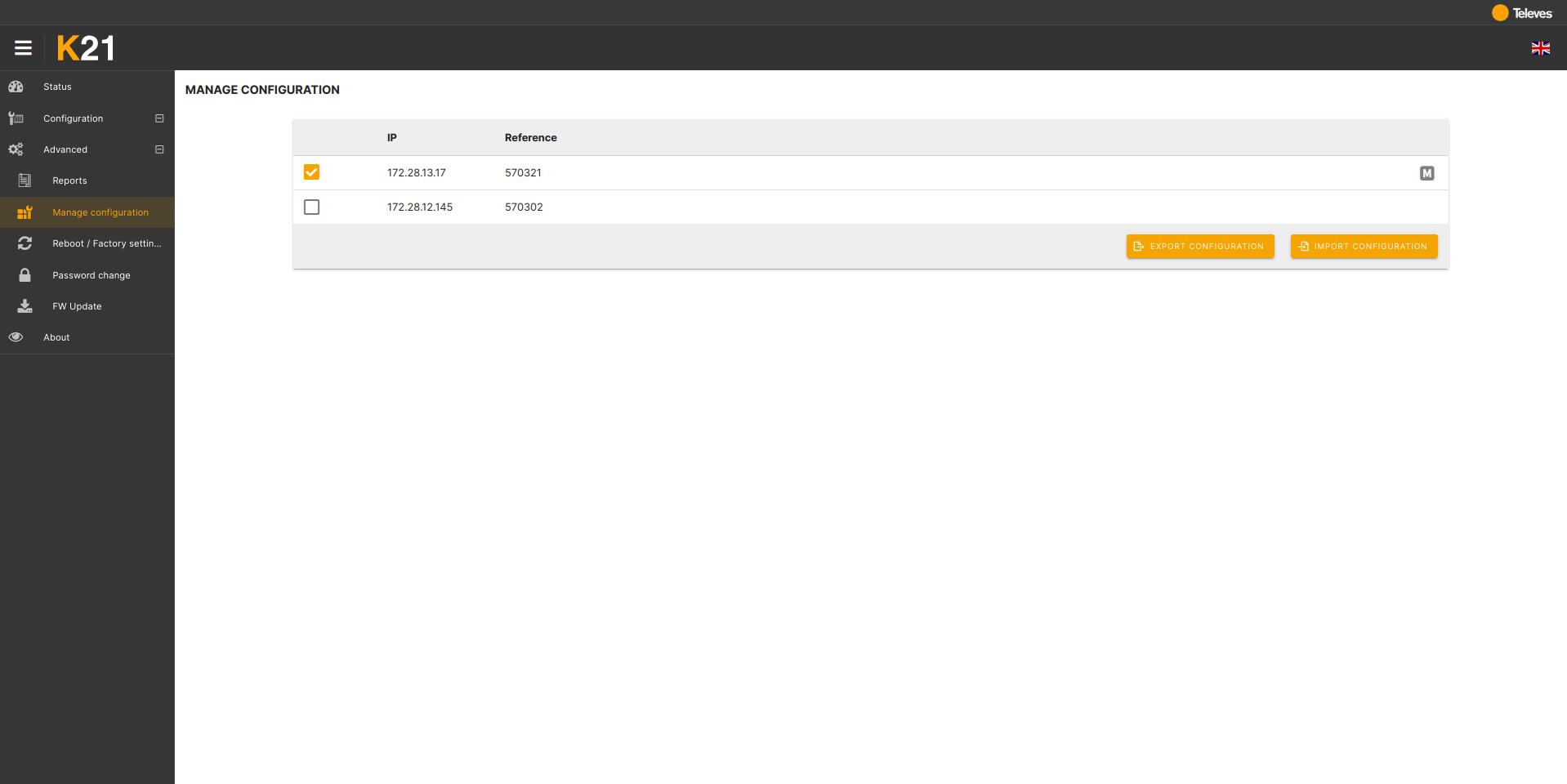

Configuration management

The interface allows saving and subsequent loading of configurations, facilitating cloning between installations.

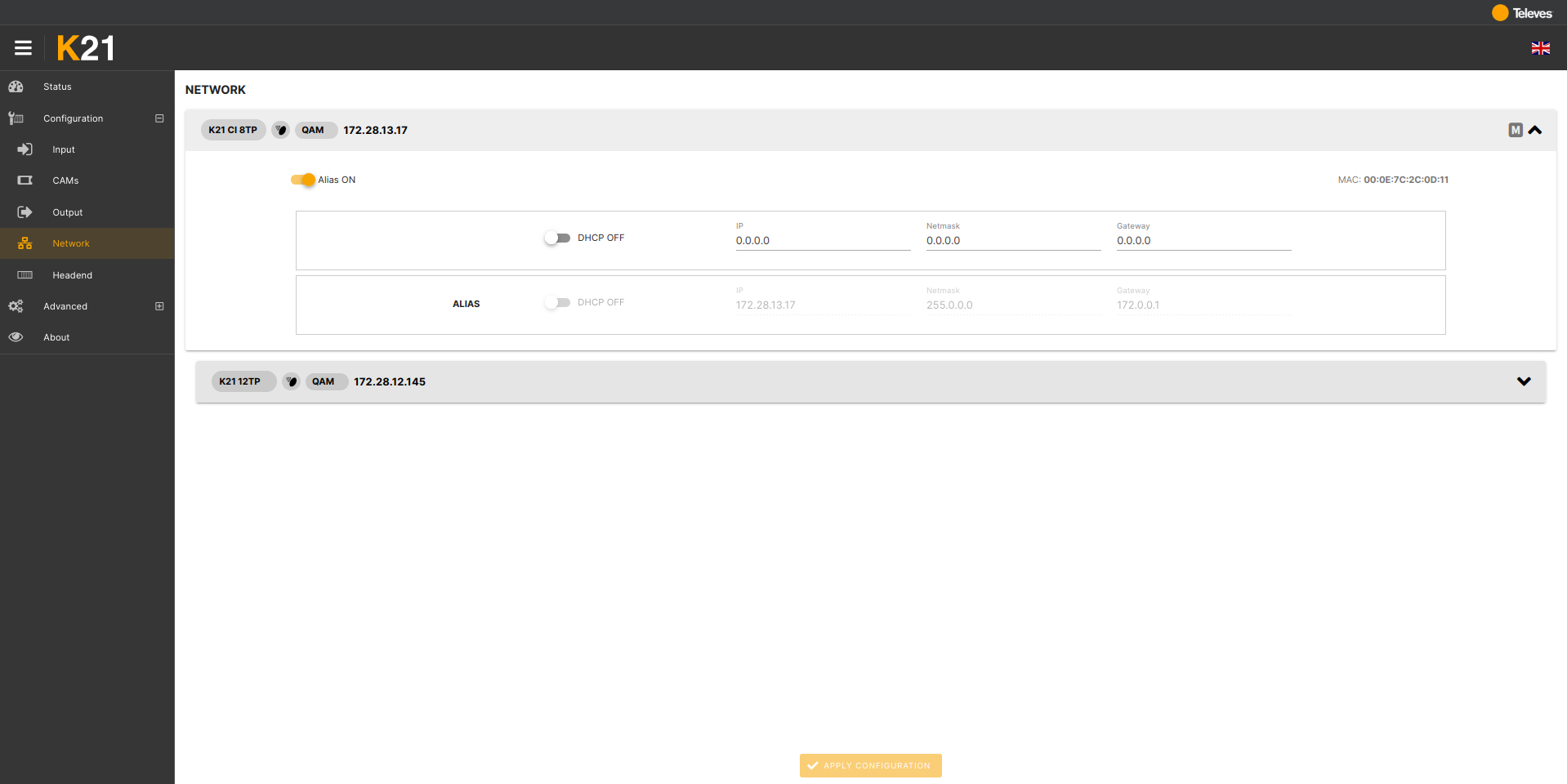

Network configuration

Management of network connection parameters on each Ethernet port: IP address, mask, gateway... as well as DHCP activation.

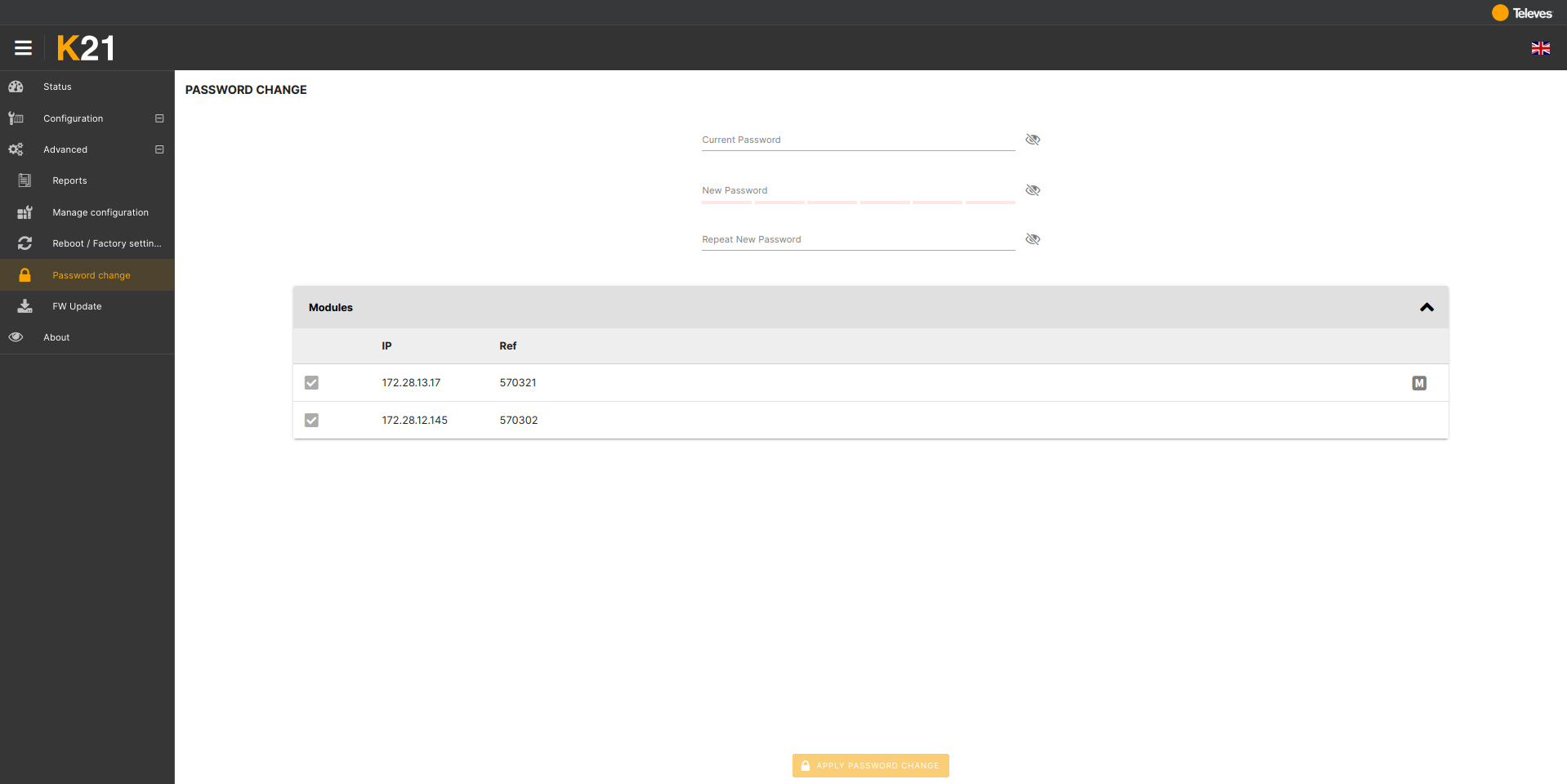

Secure configuration

Protected access to the configuration edition under password, to prevent unauthorised manipulation.

Local configuration via Ethernet connection

Access to the web interface can be made via a straight Ethernet cable connection from a PC to the master unit. The ETH1 port on the headend is used for this purpose.

In the case of looped headends, the slave unit is connected to the master via an Ethernet cable. The connection is made from the ETH2 port on the master to the ETH1 port on the slave. This allows both devices to be controlled together.

After establishing the connection, the PC must be assigned an IP address in the same subnet as the headend. The embedded web interface can then be accessed via a web browser to carry out all the installation settings.

Wireless configuration via WLAN-network

Access to the web interface can be made not only via PC connection, but also wirelessly via smartphone or tablet. This can be done by connecting a WLAN adapter (Ref. 216802) to the USB port on the bottom of the headend.

Once the WLAN network has been set up, devices are connected automatically. The embedded web interface can be accessed directly from any web browser.

For installations with looped headends, the WLAN adapter must be connected to the master unit. The connection between the master and slave remains unchanged.

Remote configuration

The K21 headend can be easily integrated into a network with Internet access. This enables remote access and system monitoring at any time. To implement this, the master unit is connected via Ethernet to a switch or router which provides Internet gateway.

Once the network connection has been established, access to the web interface can be achieved from any location. The system can be monitored, configured and maintained completely remotely. Ideal for reducing service calls and for the efficient management of large or distributed installations.
